Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: CrashVehicleOccupantType
Namespace: http://niem.gov/niem/domains/jxdm/4.0
Type: s:ComplexObjectType
Containing Schema: jxdm.xsd
Abstract
Documentation:
A data type for any vehicle occupant involved in a traffic accident.

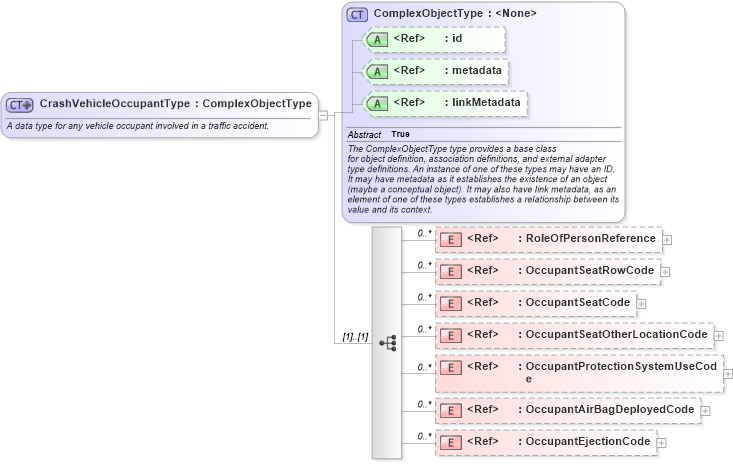

Collapse XSD Schema Diagram:
Drilldown into OccupantEjectionCode in schema jxdm_xsd Drilldown into OccupantAirBagDeployedCode in schema jxdm_xsd Drilldown into OccupantProtectionSystemUseCode in schema jxdm_xsd Drilldown into OccupantSeatOtherLocationCode in schema jxdm_xsd Drilldown into OccupantSeatCode in schema jxdm_xsd Drilldown into OccupantSeatRowCode in schema jxdm_xsd Drilldown into RoleOfPersonReference in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of CrashVehicleOccupantType in schema jxdm_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="CrashVehicleOccupantType">
    <xsd:annotation>
        <xsd:documentation>A data type for any vehicle occupant involved in a traffic accident.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:RoleOfPersonReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantSeatRowCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantSeatCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantSeatOtherLocationCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantProtectionSystemUseCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantAirBagDeployedCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:OccupantEjectionCode" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RoleOfPersonReference nc:RoleOfPersonReference 0 unbounded
OccupantSeatRowCode j:OccupantSeatRowCode 0 unbounded
OccupantSeatCode j:OccupantSeatCode 0 unbounded
OccupantSeatOtherLocationCode j:OccupantSeatOtherLocationCode 0 unbounded
OccupantProtectionSystemUseCode j:OccupantProtectionSystemUseCode 0 unbounded
OccupantAirBagDeployedCode j:OccupantAirBagDeployedCode 0 unbounded
OccupantEjectionCode j:OccupantEjectionCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
j:CrashVehicleOccupant
