Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: CrossSectPnt
Namespace: http://www.landxml.org/schema/LandXML-1.1
Type: land:PointType
Containing Schema: LandXML-1.1.xsd
Abstract

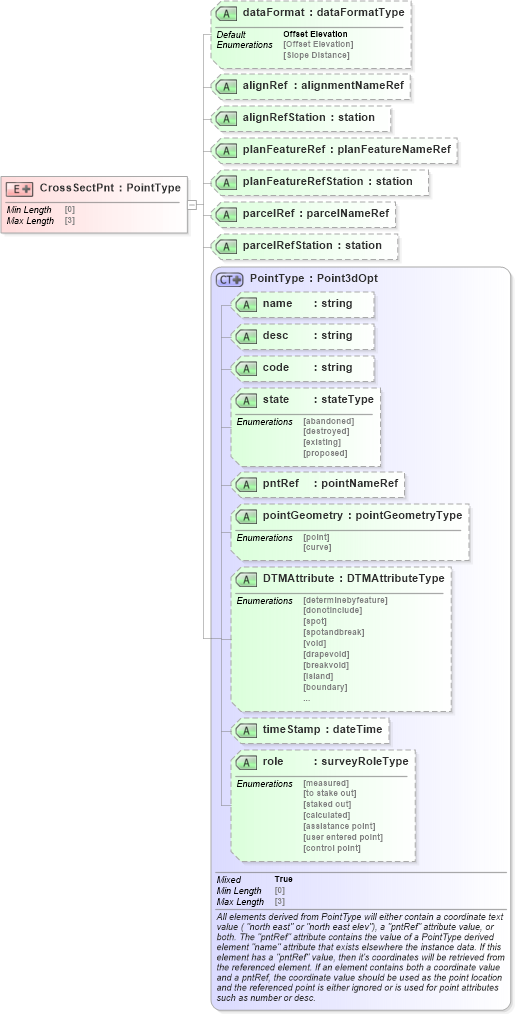

Collapse XSD Schema Diagram:
Drilldown into role in schema landxml-1_1_xsd Drilldown into timeStamp in schema landxml-1_1_xsd Drilldown into DTMAttribute in schema landxml-1_1_xsd Drilldown into pointGeometry in schema landxml-1_1_xsd Drilldown into pntRef in schema landxml-1_1_xsd Drilldown into state in schema landxml-1_1_xsd Drilldown into code in schema landxml-1_1_xsd Drilldown into desc in schema landxml-1_1_xsd Drilldown into name in schema landxml-1_1_xsd Drilldown into PointType in schema landxml-1_1_xsd Drilldown into parcelRefStation in schema landxml-1_1_xsd Drilldown into parcelRef in schema landxml-1_1_xsd Drilldown into planFeatureRefStation in schema landxml-1_1_xsd Drilldown into planFeatureRef in schema landxml-1_1_xsd Drilldown into alignRefStation in schema landxml-1_1_xsd Drilldown into alignRef in schema landxml-1_1_xsd Drilldown into dataFormat in schema landxml-1_1_xsdXSD Diagram of CrossSectPnt in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="CrossSectPnt">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:simpleContent>
            <xs:extension base="PointType">
                <xs:attribute name="dataFormat" type="dataFormatType" default="Offset Elevation" />
                <xs:attribute name="alignRef" type="alignmentNameRef" />
                <xs:attribute name="alignRefStation" type="station" />
                <xs:attribute name="planFeatureRef" type="planFeatureNameRef" />
                <xs:attribute name="planFeatureRefStation" type="station" />
                <xs:attribute name="parcelRef" type="parcelNameRef" />
                <xs:attribute name="parcelRefStation" type="station" />
            </xs:extension>
        </xs:simpleContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
name land:name (Optional)
desc land:desc (Optional)
code land:code (Optional)
state land:state (Optional)
pntRef land:pntRef (Optional)
pointGeometry land:pointGeometry (Optional)
DTMAttribute land:DTMAttribute (Optional)
timeStamp land:timeStamp Optional
role land:role Optional
dataFormat land:dataFormat Offset Elevation (Optional)
alignRef land:alignRef (Optional)
alignRefStation land:alignRefStation (Optional)
planFeatureRef land:planFeatureRef (Optional)
planFeatureRefStation land:planFeatureRefStation (Optional)
parcelRef land:parcelRef (Optional)
parcelRefStation land:parcelRefStation (Optional)
Collapse Derivation Tree:
