Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: DirectPositionType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:doubleList
Containing Schema: gml.xsd
Abstract
Documentation:
DirectPosition instances hold the coordinates for a position within some coordinate reference system (CRS). Since DirectPositions, as data types, will often be included in larger objects (such as geometry elements) that have references to CRS, the "srsName" attribute will in general be missing, if this particular DirectPosition is included in a larger element with such a reference to a CRS. In this case, the CRS is implicitly assumed to take on the value of the containing object's CRS.
Collapse XSD Schema Diagram:

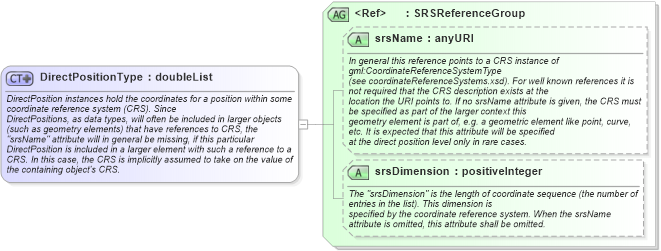

Drilldown into srsDimension in schema gml_xsd Drilldown into srsName in schema gml_xsd Drilldown into SRSReferenceGroup in schema gml_xsdXSD Diagram of DirectPositionType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="DirectPositionType">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:geometryBasic0d1d:v3.1.1">geometryBasic0d1d.xsd</appinfo>
        <documentation>DirectPosition instances hold the coordinates for a position within some coordinate reference system (CRS). Since
			DirectPositions, as data types, will often be included in larger objects (such as geometry elements) that have references to CRS, the
			"srsName" attribute will in general be missing, if this particular DirectPosition is included in a larger element with such a reference to a
			CRS. In this case, the CRS is implicitly assumed to take on the value of the containing object's CRS.</documentation>
    </annotation>
    <simpleContent>
        <extension base="gml:doubleList">
            <attributeGroup ref="gml:SRSReferenceGroup" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName Optional
srsDimension gml:srsDimension Optional
Collapse Derivation Tree:
Collapse References:
swe:geometrygml:lowerCorner, gml:pos, swe:spatialElement, gml:upperCorner,
