Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: DocumentAugmentationType
Namespace: http://niem.gov/niem/domains/screening/2.0
Type: s:AugmentationType
Containing Schema: screening.xsd
Abstract
Documentation:
A data type for additional information about a document.

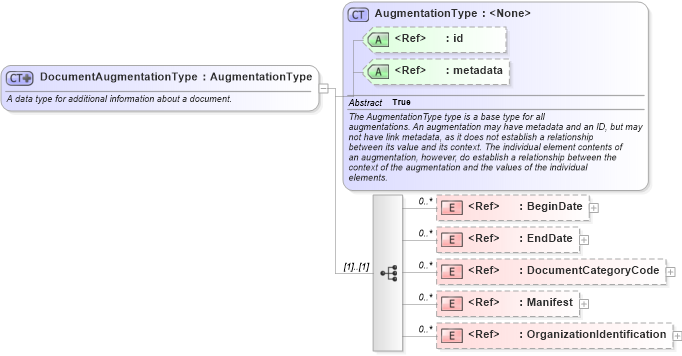

Collapse XSD Schema Diagram:
Drilldown into OrganizationIdentification in schema niem-core_xsd Drilldown into Manifest in schema screening_xsd Drilldown into DocumentCategoryCode in schema screening_xsd Drilldown into EndDate in schema niem-core_xsd Drilldown into BeginDate in schema screening_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of DocumentAugmentationType in schema screening_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="DocumentAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about a document.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="scr:BeginDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:EndDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:DocumentCategoryCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:Manifest" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:OrganizationIdentification" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BeginDate scr:BeginDate 0 unbounded
EndDate nc:EndDate 0 unbounded
DocumentCategoryCode scr:DocumentCategoryCode 0 unbounded
Manifest scr:Manifest 0 unbounded
OrganizationIdentification nc:OrganizationIdentification 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
scr:DocumentAugmentation
