Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: EllipsoidalCSType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractCoordinateSystemType
Containing Schema: gml.xsd
Abstract
Documentation:
A two- or three-dimensional coordinate system in which position is specified by geodetic latitude, geodetic longitude, and (in the three-dimensional case) ellipsoidal height. An EllipsoidalCS shall have two or three usesAxis associations.

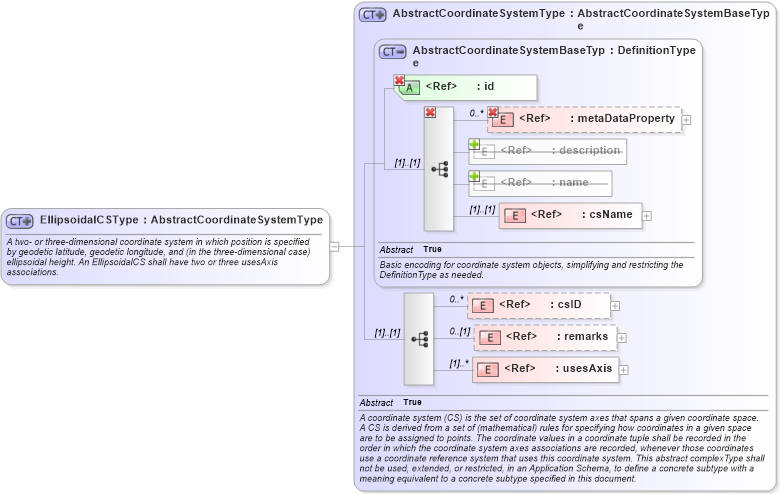

Collapse XSD Schema Diagram:
Drilldown into usesAxis in schema gml_xsd Drilldown into remarks in schema gml_xsd Drilldown into csID in schema gml_xsd Drilldown into csName in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractCoordinateSystemBaseType in schema gml_xsd Drilldown into AbstractCoordinateSystemType in schema gml_xsdXSD Diagram of EllipsoidalCSType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="EllipsoidalCSType">
    <annotation>
        <documentation>A two- or three-dimensional coordinate system in which position is specified by geodetic latitude, geodetic longitude, and (in the three-dimensional case) ellipsoidal height. An EllipsoidalCS shall have two or three usesAxis associations. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractCoordinateSystemType" />
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
csName gml:csName (1) (1)
csID gml:csID 0 unbounded
remarks gml:remarks 0 (1)
usesAxis gml:usesAxis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:EllipsoidalCSgmx:ML_EllipsoidalCS_Type,
