Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: EndModeWayPointType
Namespace: http://niem.gov/niem/geospatial/2.0
Type: s:ComplexObjectType
Containing Schema: geospatial.xsd
Abstract
Documentation:
Ending point of a multi-modal route that ends at a transportation mode (e.g. foot, bicycle, taxi, bus, rail, boat, airplane) transfer point.

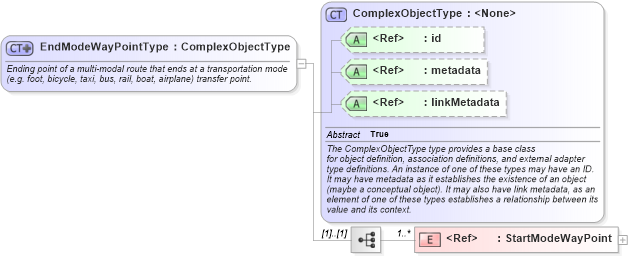

Collapse XSD Schema Diagram:
Drilldown into StartModeWayPoint in schema multimodalroute_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of EndModeWayPointType in schema geospatial_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="EndModeWayPointType">
    <xsd:annotation>
        <xsd:documentation>Ending point of a multi-modal route that ends at a transportation mode (e.g. foot, bicycle, taxi, bus, rail, boat, airplane) transfer point.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
            <i:ExternalAdapterTypeIndicator xmlns:i="http://niem.gov/niem/appinfo/2.0">true</i:ExternalAdapterTypeIndicator>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="mmr:StartModeWayPoint" minOccurs="1" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StartModeWayPoint mmr:StartModeWayPoint 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
geo:EndModeWayPoint
