Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: EnforcementOfficialType
Namespace: http://niem.gov/niem/domains/jxdm/4.0
Type: s:ComplexObjectType
Containing Schema: jxdm.xsd
Abstract
Documentation:
A data type for a person involved in the enforcement of law.

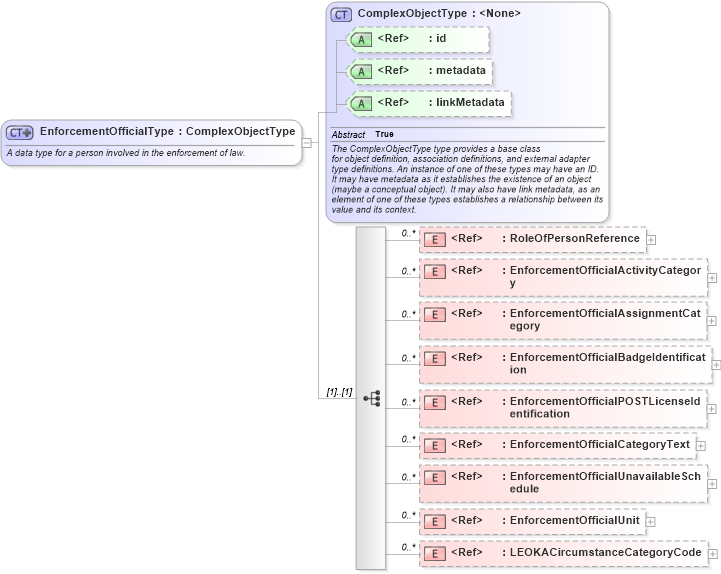

Collapse XSD Schema Diagram:
Drilldown into LEOKACircumstanceCategoryCode in schema jxdm_xsd Drilldown into EnforcementOfficialUnit in schema jxdm_xsd Drilldown into EnforcementOfficialUnavailableSchedule in schema jxdm_xsd Drilldown into EnforcementOfficialCategoryText in schema jxdm_xsd Drilldown into EnforcementOfficialPOSTLicenseIdentification in schema jxdm_xsd Drilldown into EnforcementOfficialBadgeIdentification in schema jxdm_xsd Drilldown into EnforcementOfficialAssignmentCategory in schema jxdm_xsd Drilldown into EnforcementOfficialActivityCategory in schema jxdm_xsd Drilldown into RoleOfPersonReference in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of EnforcementOfficialType in schema jxdm_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="EnforcementOfficialType">
    <xsd:annotation>
        <xsd:documentation>A data type for a person involved in the enforcement of law.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:RoleOfPersonReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialActivityCategory" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialAssignmentCategory" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialBadgeIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialPOSTLicenseIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialCategoryText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialUnavailableSchedule" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:EnforcementOfficialUnit" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:LEOKACircumstanceCategoryCode" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RoleOfPersonReference nc:RoleOfPersonReference 0 unbounded
EnforcementOfficialActivityCategory j:EnforcementOfficialActivityCategory 0 unbounded
EnforcementOfficialAssignmentCategory j:EnforcementOfficialAssignmentCategory 0 unbounded
EnforcementOfficialBadgeIdentification j:EnforcementOfficialBadgeIdentification 0 unbounded
EnforcementOfficialPOSTLicenseIdentification j:EnforcementOfficialPOSTLicenseIdentification 0 unbounded
EnforcementOfficialCategoryText j:EnforcementOfficialCategoryText 0 unbounded
EnforcementOfficialUnavailableSchedule j:EnforcementOfficialUnavailableSchedule 0 unbounded
EnforcementOfficialUnit j:EnforcementOfficialUnit 0 unbounded
LEOKACircumstanceCategoryCode j:LEOKACircumstanceCategoryCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
j:ArrestOfficial, j:BookingEmployee, j:BookingReleaseCorrectionsAnalyst, j:BookingSearchOfficial, j:BookingTelephoneCallSupervisingOfficial, j:BookingTransportOfficial, j:CitationIssuingOfficial, j:CourtOrderServiceOfficialEnforcement, j:CustodyTransferReceivingEnforcementOfficial, j:CustodyTransferReleasingEnforcementOfficial, j:EnforcementOfficial, j:IncidentAssistingOfficial, j:IncidentReportingOfficial, j:IncidentResponseOfficial, j:IncidentSupervisingOfficial, j:PropertySeizureSeizingEnforcementOfficial, j:ServiceCallDispatchedOfficial, j:VisitationSupervisingOfficialEnforcement
