Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: featureOfInterest
Namespace: http://niem.gov/niem/external/ogc-observation/draft-0.14.5/om/dhs-gmo/1.0.0
Type: gml:FeaturePropertyType
Containing Schema: observation.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
the Feature regarding which the observations are being made, sometimes called the target or subject of the observation, such as a specimen, station, tract, mountain, pixel, etc. The spatial properties (location) of this feature of interest are typically of most interest for spatial analysis of the observation result.

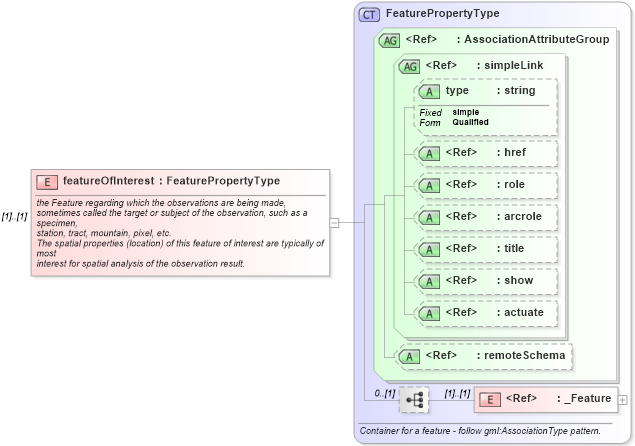

Collapse XSD Schema Diagram:
Drilldown into _Feature in schema gml_xsd Drilldown into remoteSchema in schema gml_xsd Drilldown into actuate in schema xlinks_xsd Drilldown into show in schema xlinks_xsd Drilldown into title in schema xlinks_xsd Drilldown into arcrole in schema xlinks_xsd Drilldown into role in schema xlinks_xsd Drilldown into href in schema xlinks_xsd Drilldown into type in schema xlinks_xsd Drilldown into simpleLink in schema xlinks_xsd Drilldown into AssociationAttributeGroup in schema gml_xsd Drilldown into FeaturePropertyType in schema gml_xsdXSD Diagram of featureOfInterest in schema observation_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="featureOfInterest" type="gml:FeaturePropertyType">
    <annotation>
        <documentation>the Feature regarding which the observations are being made,
sometimes called the target or subject of the observation, such as a specimen,
station, tract, mountain, pixel, etc.
The spatial properties (location) of this feature of interest are typically of most
interest for spatial analysis of the observation result.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
_Feature gml:_Feature (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href Optional
role xlink:role Optional
arcrole xlink:arcrole Optional
title xlink:title Optional
show xlink:show Optional
actuate xlink:actuate Optional
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
