Definition Type: ComplexType
Name: FingerprintAugmentationType
Namespace: http://niem.gov/niem/domains/screening/2.0
Type: s:AugmentationType
Containing Schema: screening.xsd
Abstract
Documentation:
A data type for additional information about a fingerprint.

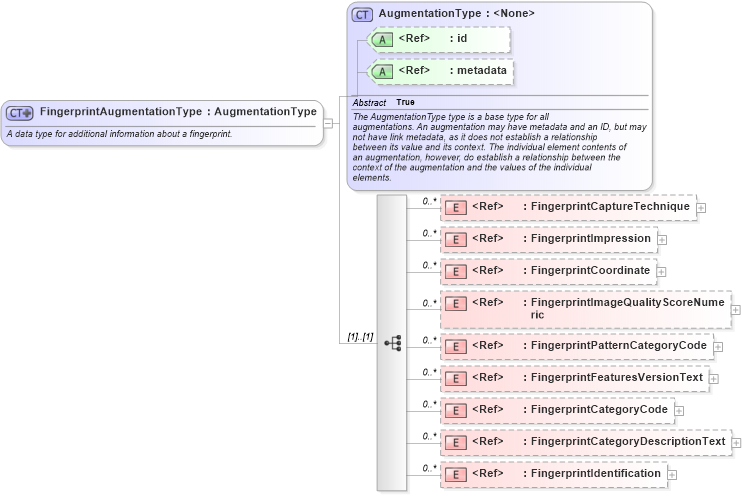

Collapse XSD Schema Diagram:
Drilldown into FingerprintIdentification in schema screening_xsd Drilldown into FingerprintCategoryDescriptionText in schema screening_xsd Drilldown into FingerprintCategoryCode in schema screening_xsd Drilldown into FingerprintFeaturesVersionText in schema screening_xsd Drilldown into FingerprintPatternCategoryCode in schema screening_xsd Drilldown into FingerprintImageQualityScoreNumeric in schema screening_xsd Drilldown into FingerprintCoordinate in schema screening_xsd Drilldown into FingerprintImpression in schema screening_xsd Drilldown into FingerprintCaptureTechnique in schema screening_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of FingerprintAugmentationType in schema screening_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="FingerprintAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about a fingerprint.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="scr:FingerprintCaptureTechnique" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintImpression" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintCoordinate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintImageQualityScoreNumeric" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintPatternCategoryCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintFeaturesVersionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintCategoryCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintCategoryDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:FingerprintIdentification" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FingerprintCaptureTechnique scr:FingerprintCaptureTechnique 0 unbounded
FingerprintImpression scr:FingerprintImpression 0 unbounded
FingerprintCoordinate scr:FingerprintCoordinate 0 unbounded
FingerprintImageQualityScoreNumeric scr:FingerprintImageQualityScoreNumeric 0 unbounded
FingerprintPatternCategoryCode scr:FingerprintPatternCategoryCode 0 unbounded
FingerprintFeaturesVersionText scr:FingerprintFeaturesVersionText 0 unbounded
FingerprintCategoryCode scr:FingerprintCategoryCode 0 unbounded
FingerprintCategoryDescriptionText scr:FingerprintCategoryDescriptionText 0 unbounded
FingerprintIdentification scr:FingerprintIdentification 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
scr:FingerprintAugmentation
