Definition Type: ComplexType
Name: FormulaType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Containing Schema: gml.xsd
Abstract
Documentation:
Paremeters of a simple formula by which a value using this unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type "double". These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the preferred unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters.

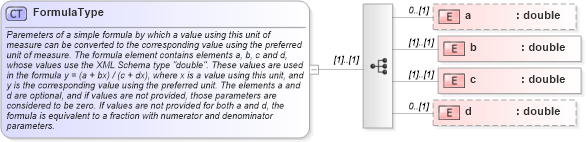

Collapse XSD Schema Diagram:
Drilldown into d in schema gml_xsd Drilldown into c in schema gml_xsd Drilldown into b in schema gml_xsd Drilldown into a in schema gml_xsdXSD Diagram of FormulaType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="FormulaType">
    <annotation>
        <documentation>Paremeters of a simple formula by which a value using this unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type "double". These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the preferred unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters. </documentation>
    </annotation>
    <sequence>
        <element name="a" type="double" minOccurs="0" />
        <element name="b" type="double" />
        <element name="c" type="double" />
        <element name="d" type="double" minOccurs="0" />
    </sequence>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
a gml:a 0 (1)
b gml:b (1) (1)
c gml:c (1) (1)
d gml:d 0 (1)
Collapse Derivation Tree:
Collapse References:
gml:formula
