Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: GeographicCRSType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractReferenceSystemType
Containing Schema: gml.xsd
Abstract
Documentation:
A coordinate reference system based on an ellipsoidal approximation of the geoid; this provides an accurate representation of the geometry of geographic features for a large portion of the earth's surface.

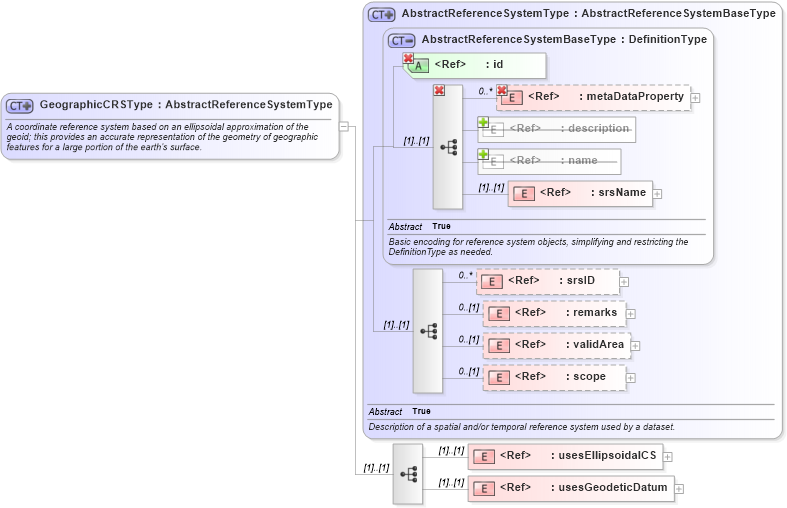

Collapse XSD Schema Diagram:
Drilldown into usesGeodeticDatum in schema gml_xsd Drilldown into usesEllipsoidalCS in schema gml_xsd Drilldown into scope in schema gml_xsd Drilldown into validArea in schema gml_xsd Drilldown into remarks in schema gml_xsd Drilldown into srsID in schema gml_xsd Drilldown into srsName in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractReferenceSystemBaseType in schema gml_xsd Drilldown into AbstractReferenceSystemType in schema gml_xsdXSD Diagram of GeographicCRSType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="GeographicCRSType">
    <annotation>
        <documentation>A coordinate reference system based on an ellipsoidal approximation of the geoid; this provides an accurate representation of the geometry of geographic features for a large portion of the earth's surface.</documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractReferenceSystemType">
            <sequence>
                <element ref="gml:usesEllipsoidalCS" />
                <element ref="gml:usesGeodeticDatum" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
srsName gml:srsName (1) (1)
srsID gml:srsID 0 unbounded
remarks gml:remarks 0 (1)
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
usesEllipsoidalCS gml:usesEllipsoidalCS (1) (1)
usesGeodeticDatum gml:usesGeodeticDatum (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:GeographicCRSgmx:ML_GeographicCRS_Type,
