Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: GPSAntennaDetails
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

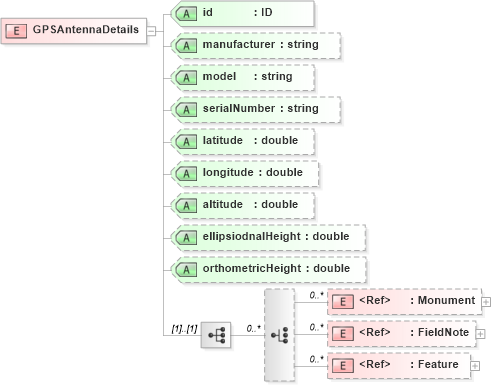

Collapse XSD Schema Diagram:
Drilldown into Feature in schema landxml-1_1_xsd Drilldown into FieldNote in schema landxml-1_1_xsd Drilldown into Monument in schema landxml-1_1_xsd Drilldown into orthometricHeight in schema landxml-1_1_xsd Drilldown into ellipsiodnalHeight in schema landxml-1_1_xsd Drilldown into altitude in schema landxml-1_1_xsd Drilldown into longitude in schema landxml-1_1_xsd Drilldown into latitude in schema landxml-1_1_xsd Drilldown into serialNumber in schema landxml-1_1_xsd Drilldown into model in schema landxml-1_1_xsd Drilldown into manufacturer in schema landxml-1_1_xsd Drilldown into id in schema landxml-1_1_xsdXSD Diagram of GPSAntennaDetails in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="GPSAntennaDetails">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="Monument" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="FieldNote" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="Feature" minOccurs="0" maxOccurs="unbounded" />
            </xs:choice>
        </xs:sequence>
        <xs:attribute name="id" type="xs:ID" use="required" />
        <xs:attribute name="manufacturer" type="xs:string" />
        <xs:attribute name="model" type="xs:string" />
        <xs:attribute name="serialNumber" type="xs:string" />
        <xs:attribute name="latitude" type="xs:double" />
        <xs:attribute name="longitude" type="xs:double" />
        <xs:attribute name="altitude" type="xs:double" />
        <xs:attribute name="ellipsiodnalHeight" type="xs:double" />
        <xs:attribute name="orthometricHeight" type="xs:double" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Monument land:Monument 0 unbounded
FieldNote land:FieldNote 0 unbounded
Feature land:Feature 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id land:id Required
manufacturer land:manufacturer (Optional)
model land:model (Optional)
serialNumber land:serialNumber (Optional)
latitude land:latitude (Optional)
longitude land:longitude (Optional)
altitude land:altitude (Optional)
ellipsiodnalHeight land:ellipsiodnalHeight (Optional)
orthometricHeight land:orthometricHeight (Optional)
