Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: GPSQCInfoLevel2
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract
Collapse XSD Schema Diagram:

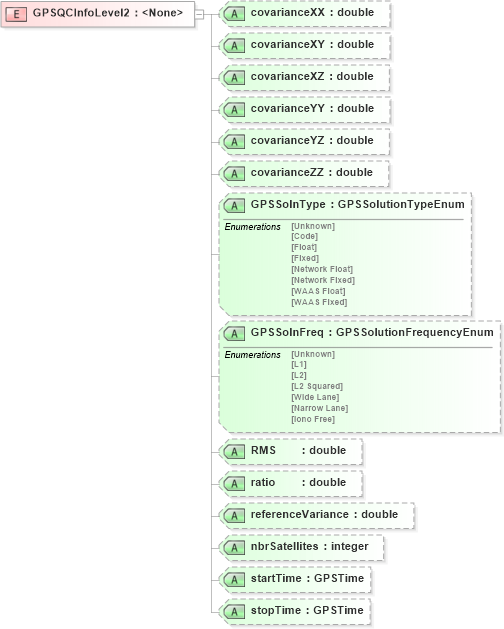

Drilldown into stopTime in schema landxml-1_1_xsd Drilldown into startTime in schema landxml-1_1_xsd Drilldown into nbrSatellites in schema landxml-1_1_xsd Drilldown into referenceVariance in schema landxml-1_1_xsd Drilldown into ratio in schema landxml-1_1_xsd Drilldown into RMS in schema landxml-1_1_xsd Drilldown into GPSSolnFreq in schema landxml-1_1_xsd Drilldown into GPSSolnType in schema landxml-1_1_xsd Drilldown into covarianceZZ in schema landxml-1_1_xsd Drilldown into covarianceYZ in schema landxml-1_1_xsd Drilldown into covarianceYY in schema landxml-1_1_xsd Drilldown into covarianceXZ in schema landxml-1_1_xsd Drilldown into covarianceXY in schema landxml-1_1_xsd Drilldown into covarianceXX in schema landxml-1_1_xsdXSD Diagram of GPSQCInfoLevel2 in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="GPSQCInfoLevel2">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="covarianceXX" type="xs:double" />
        <xs:attribute name="covarianceXY" type="xs:double" />
        <xs:attribute name="covarianceXZ" type="xs:double" />
        <xs:attribute name="covarianceYY" type="xs:double" />
        <xs:attribute name="covarianceYZ" type="xs:double" />
        <xs:attribute name="covarianceZZ" type="xs:double" />
        <xs:attribute name="GPSSolnType" type="GPSSolutionTypeEnum" />
        <xs:attribute name="GPSSolnFreq" type="GPSSolutionFrequencyEnum" />
        <xs:attribute name="RMS" type="xs:double" />
        <xs:attribute name="ratio" type="xs:double" />
        <xs:attribute name="referenceVariance" type="xs:double" />
        <xs:attribute name="nbrSatellites" type="xs:integer" />
        <xs:attribute name="startTime" type="GPSTime" />
        <xs:attribute name="stopTime" type="GPSTime" />
        <!--  GPS Time = Nbr of GPS weeks * 604800 (seconds in a week) + seconds in GPS week  -->
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
covarianceXX land:covarianceXX (Optional)
covarianceXY land:covarianceXY (Optional)
covarianceXZ land:covarianceXZ (Optional)
covarianceYY land:covarianceYY (Optional)
covarianceYZ land:covarianceYZ (Optional)
covarianceZZ land:covarianceZZ (Optional)
GPSSolnType land:GPSSolnType (Optional)
GPSSolnFreq land:GPSSolnFreq (Optional)
RMS land:RMS (Optional)
ratio land:ratio (Optional)
referenceVariance land:referenceVariance (Optional)
nbrSatellites land:nbrSatellites (Optional)
startTime land:startTime (Optional)
stopTime land:stopTime (Optional)
