Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IdentificationAugmentationType
Namespace: http://niem.gov/niem/domains/intelligence/2.0
Type: s:AugmentationType
Containing Schema: intelligence.xsd
Abstract
Documentation:
A data type for additional information about an identification.

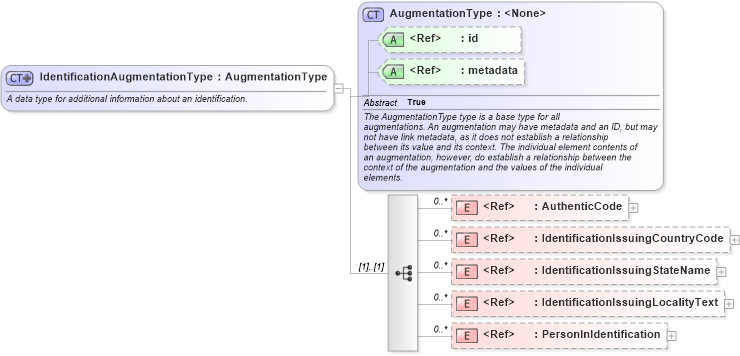

Collapse XSD Schema Diagram:
Drilldown into PersonInIdentification in schema intelligence_xsd Drilldown into IdentificationIssuingLocalityText in schema intelligence_xsd Drilldown into IdentificationIssuingStateName in schema intelligence_xsd Drilldown into IdentificationIssuingCountryCode in schema intelligence_xsd Drilldown into AuthenticCode in schema intelligence_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of IdentificationAugmentationType in schema intelligence_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="IdentificationAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about an identification.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="intel:AuthenticCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="intel:IdentificationIssuingCountryCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="intel:IdentificationIssuingStateName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="intel:IdentificationIssuingLocalityText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="intel:PersonInIdentification" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AuthenticCode intel:AuthenticCode 0 unbounded
IdentificationIssuingCountryCode intel:IdentificationIssuingCountryCode 0 unbounded
IdentificationIssuingStateName intel:IdentificationIssuingStateName 0 unbounded
IdentificationIssuingLocalityText intel:IdentificationIssuingLocalityText 0 unbounded
PersonInIdentification intel:PersonInIdentification 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
intel:IdentificationAugmentation
