Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IdentificationType
Namespace: http://niem.gov/niem/niem-core/2.0
Type: s:ComplexObjectType
Containing Schema: niem-core.xsd
Abstract
Documentation:
A data type for a representation of an identity.

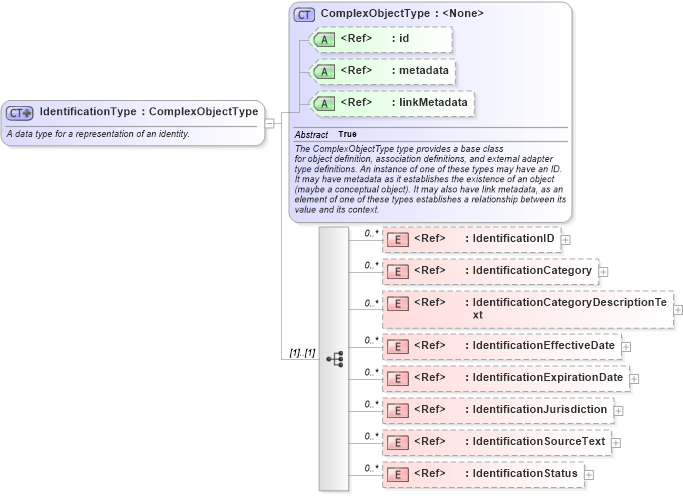

Collapse XSD Schema Diagram:
Drilldown into IdentificationStatus in schema niem-core_xsd Drilldown into IdentificationSourceText in schema niem-core_xsd Drilldown into IdentificationJurisdiction in schema niem-core_xsd Drilldown into IdentificationExpirationDate in schema niem-core_xsd Drilldown into IdentificationEffectiveDate in schema niem-core_xsd Drilldown into IdentificationCategoryDescriptionText in schema niem-core_xsd Drilldown into IdentificationCategory in schema niem-core_xsd Drilldown into IdentificationID in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of IdentificationType in schema niem-core_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="IdentificationType">
    <xsd:annotation>
        <xsd:documentation>A data type for a representation of an identity.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:IdentificationID" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationCategory" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationCategoryDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationEffectiveDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationExpirationDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationJurisdiction" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationSourceText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:IdentificationStatus" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IdentificationID nc:IdentificationID 0 unbounded
IdentificationCategory nc:IdentificationCategory 0 unbounded
IdentificationCategoryDescriptionText nc:IdentificationCategoryDescriptionText 0 unbounded
IdentificationEffectiveDate nc:IdentificationEffectiveDate 0 unbounded
IdentificationExpirationDate nc:IdentificationExpirationDate 0 unbounded
IdentificationJurisdiction nc:IdentificationJurisdiction 0 unbounded
IdentificationSourceText nc:IdentificationSourceText 0 unbounded
IdentificationStatus nc:IdentificationStatus 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
nc:ActivityIdentification, scr:AddressIdentification, im:AdmissionIdentification, im:AlertGeneratingOfficerBadgeIdentification, im:AlertIdentification, scr:AlertIdentification, scr:AlienEncounterIdentification, im:AlienIncidentSequenceID, im:AlienMiscellaneousIdentification, im:AlienMiscellaneousNumberIdentification, im:AlienMiscellaneousNumberIDType, im:AlienNumber, j:AppellateCaseDecisionIdentification, j:ArrestAgencyRecordIdentification, j:ArrestSequenceID, im:AuthorizationIdentification, scr:BiographicIdentification, scr:BiometricCoordinateIdentification, j:BookingAgencyRecordIdentification, j:BookingCourtCaseIdentification, j:BookingDocumentControlIdentification, j:BookingFileIdentification, ansi-nist:CaptureDeviceGlobalIdentification, ansi-nist:CaptureDeviceIdentification, j:CaseOfficialCaseIdentification, j:CaseOtherIdentification, ansi-nist:CBEFFFormatCategoryIdentification, ansi-nist:CBEFFFormatOwnerIdentification, ansi-nist:CBEFFVersionIdentification, im:ChainOfCustodySequenceID, ansi-nist:CharacterSetVersionIdentification, j:ChargeIdentification, scr:ChargeIdentification, j:ChargeSequenceID, j:ChargeTrackingIdentification, im:CitizenshipCertificateIdentification, j:CommercialCarrierStateIdentification, it:CommodityUNDGIdentification, it:ConsignmentIdentification, intel:ConveyanceRegistrationIdentification, nc:ConveyanceRegistrationPlateIdentification, j:ConvictionLocatorReferenceIdentification, j:CourtEventSequenceID, j:CriminalOrganizationNCICIdentification, it:CustomsItemIdentification, it:DeclarationTraderAssignedIdentification, im:DependentIdentification, scr:DerogatoryInformationIdentification, im:DisciplinaryActionIdentification, nc:DocumentIdentification, it:DocumentIssueLocationIdentification, ansi-nist:DomainVersionNumberIdentification, nc:DriverLicenseIdentification, nc:DriverLicenseWithdrawalLocatorReferenceIdentification, j:DrivingIncidentLocatorReferenceIdentification, nc:EmployeeIdentification, nc:EncounterIdentification, j:EnforcementOfficialBadgeIdentification, j:EnforcementOfficialPOSTLicenseIdentification, j:EnforcementUnitBeatIdentification, j:EnforcementUnitIdentification, j:EnforcementUnitNumberIdentification, j:EnforcementUnitSectionIdentification, im:EnrollmentApplicationSubmissionOfficerIdentification, it:EquipmentSealIdentification, j:EvidenceNumberIdentification, j:EvidenceOtherIdentification, j:EvidenceReceiptIdentification, j:ExhibitIdentification, im:ExtensionRequestIdentification, nc:FacilityIdentification, ansi-nist:FeaturePointCategoryText, ansi-nist:FeaturePointIdentification, im:FileIdentification, scr:FingerprintIdentification, ip:FlightIdentification, it:GoodsDeclarationCustomsIdentification, im:ICEEmployeeBadgeIdentification, im:ICEEmployeePINIdentification, nc:Identification, j:ImageNCICIdentification, ansi-nist:ImageReferenceIdentification, nc:InsuranceCarrierIdentification, nc:InsurancePolicyIdentification, nc:IntellectualPropertyRegistrationIdentification, nc:ItemBarCodeIdentification, nc:ItemDealerIdentification, j:ItemLotIdentification, nc:ItemOtherIdentification, nc:ItemReceiptIdentification, nc:ItemRFIdentification, nc:ItemSerialIdentification, nc:ItemStateIdentification, it:ItineraryIdentification, j:JudgePanelIdentification, j:JudicialOfficialBarIdentification, j:JudicialOfficialPanelIdentification, j:JudicialOfficialRegistrationIdentification, j:JurisdictionDistrictIdentification, j:JurisdictionIdentification, nc:JurisdictionIdentification, j:JurorIdentification, j:JurorPanelIdentification, nc:KitIdentification, scr:LeadIdentification, nc:LessorIdentification, scr:LocationCountryIdentification, it:LocationCountrySubEntityIdentification, scr:LocationElementIdentification, im:LocationIdentification, it:LocationIdentification, scr:LocationIdentification, im:MarriageIdentification, ansi-nist:MaximumRangeIdentification, em:MessageRequestIdentification, ansi-nist:MinimumRangeIdentification, ansi-nist:MinutiaIdentification, j:MissingPersonIdentification, nc:OrganizationIdentification, nc:OrganizationLocalIdentification, scr:OrganizationNameIdentification, j:OrganizationORIIdentification, nc:OrganizationOtherIdentification, nc:OrganizationTaxIdentification, em:OriginatingMessageIdentification, nc:PassportNumberIdentification, em:PermitIdentification, j:PersonAFISIdentification, intel:PersonDriverLicenseIdentification, scr:PersonEnumeratorIdentification, j:PersonFBIIdentification, j:PersonGeneralLedgerIdentification, nc:PersonHumanResourceIdentification, scr:PersonIdentification, intel:PersonInIdentification, nc:PersonLicenseIdentification, intel:PersonNationalIdentification, nc:PersonNationalIdentification, j:PersonNCICIdentification, intel:PersonOtherIdentification, nc:PersonOtherIdentification, nc:PersonPassportIdentification, intel:PersonSSNIdentification, nc:PersonSSNIdentification, j:PersonStateFingerprintIdentification, nc:PersonStateIdentification, nc:PersonTaxIdentification, j:PersonVendorIdentification, im:ProgramIdentification, j:PropertyFederalIdentification, j:PropertyNCICIdentification, ansi-nist:QualityAlgorithmProductIdentification, ansi-nist:QualityAlgorithmVendorIdentification, ansi-nist:QualityMeasureVendorIdentification, ansi-nist:ReadingSystemSubsystemIdentification, j:RegisteredOffenderIdentification, nc:RegistrationIdentification, em:ResourceIdentification, em:ResourceOrderIdentification, ansi-nist:RidgeCountReferenceIdentification, j:RoadwayRailwayCrossingIdentification, j:RoadwayStructureIdentification, j:SanctionRelatedSanctionIdentification, j:SeverityLevelIdentification, nc:StatusIssuerIdentification, j:StatuteCodeIdentification, j:StatuteCodeSectionIdentification, j:StatuteOffenseIdentification, j:SubjectIdentification, j:SupervisionAreaIdentification, j:SupervisionBedIdentification, j:SupervisionCellIdentification, scr:TelephoneIdentification, nc:TitleIdentification, ansi-nist:TransactionControlIdentification, scr:TransactionControlNumberIdentification, ansi-nist:TransactionControlReferenceIdentification, ansi-nist:TransactionUserIdentification, it:TransportMeansBorderCrossingIdentification, it:TransportMeansConveyanceReferenceIdentification, it:TransportMeansIdentification, it:TransportMeansStayIdentification, nc:VehicleBranderIdentification, nc:VehicleIdentification, nc:VehicleInspectionEmissionCertificationIdentification, nc:VehicleInspectionInspectorIdentification, nc:VehicleInspectionStationIdentification, nc:VehicleInvoiceIdentification, nc:VehicleMotorCarrierIdentification, nc:VesselHullIdentification, nc:VesselRegistrationIdentificationj:VictimIdentification, scr:WarrantIdentification, j:WitnessIdentification,
