Definition Type: ComplexType
Name: IfcBoundaryEdgeCondition
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcBoundaryCondition
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

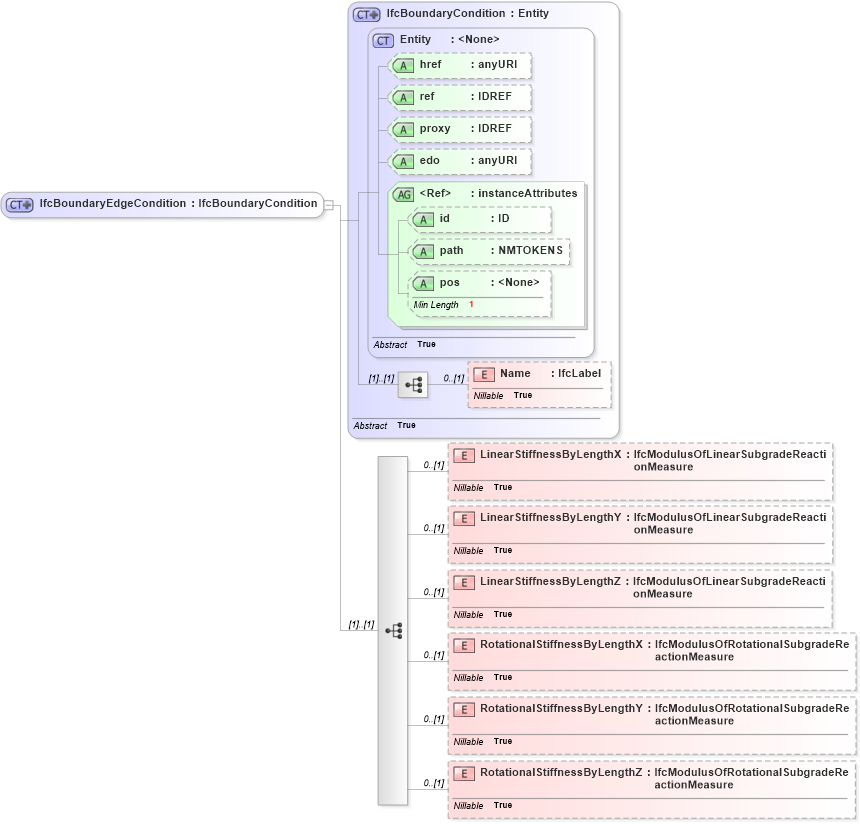

Drilldown into RotationalStiffnessByLengthZ in schema ifc2x2_final_xsd Drilldown into RotationalStiffnessByLengthY in schema ifc2x2_final_xsd Drilldown into RotationalStiffnessByLengthX in schema ifc2x2_final_xsd Drilldown into LinearStiffnessByLengthZ in schema ifc2x2_final_xsd Drilldown into LinearStiffnessByLengthY in schema ifc2x2_final_xsd Drilldown into LinearStiffnessByLengthX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcBoundaryCondition in schema ifc2x2_final_xsdXSD Diagram of IfcBoundaryEdgeCondition in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcBoundaryEdgeCondition">
    <xs:complexContent>
        <xs:extension base="ifc:IfcBoundaryCondition">
            <xs:sequence>
                <xs:element name="LinearStiffnessByLengthX" type="ifc:IfcModulusOfLinearSubgradeReactionMeasure" nillable="true" minOccurs="0" />
                <xs:element name="LinearStiffnessByLengthY" type="ifc:IfcModulusOfLinearSubgradeReactionMeasure" nillable="true" minOccurs="0" />
                <xs:element name="LinearStiffnessByLengthZ" type="ifc:IfcModulusOfLinearSubgradeReactionMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalStiffnessByLengthX" type="ifc:IfcModulusOfRotationalSubgradeReactionMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalStiffnessByLengthY" type="ifc:IfcModulusOfRotationalSubgradeReactionMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RotationalStiffnessByLengthZ" type="ifc:IfcModulusOfRotationalSubgradeReactionMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
LinearStiffnessByLengthX ifc:LinearStiffnessByLengthX 0 (1)
LinearStiffnessByLengthY ifc:LinearStiffnessByLengthY 0 (1)
LinearStiffnessByLengthZ ifc:LinearStiffnessByLengthZ 0 (1)
RotationalStiffnessByLengthX ifc:RotationalStiffnessByLengthX 0 (1)
RotationalStiffnessByLengthY ifc:RotationalStiffnessByLengthY 0 (1)
RotationalStiffnessByLengthZ ifc:RotationalStiffnessByLengthZ 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcBoundaryEdgeCondition
