Definition Type: ComplexType
Name: IfcBoundaryNodeConditionWarping
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcBoundaryNodeCondition
Containing Schema: IFC2X2_FINAL.xsd
Abstract

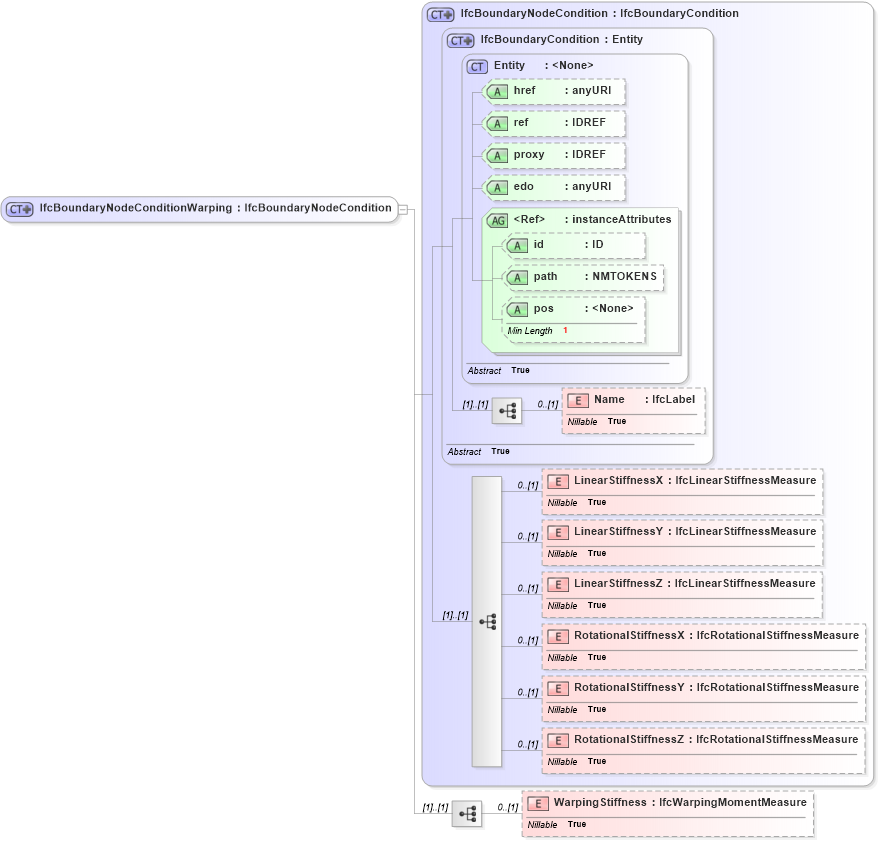

Collapse XSD Schema Diagram:
Drilldown into WarpingStiffness in schema ifc2x2_final_xsd Drilldown into RotationalStiffnessZ in schema ifc2x2_final_xsd Drilldown into RotationalStiffnessY in schema ifc2x2_final_xsd Drilldown into RotationalStiffnessX in schema ifc2x2_final_xsd Drilldown into LinearStiffnessZ in schema ifc2x2_final_xsd Drilldown into LinearStiffnessY in schema ifc2x2_final_xsd Drilldown into LinearStiffnessX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcBoundaryCondition in schema ifc2x2_final_xsd Drilldown into IfcBoundaryNodeCondition in schema ifc2x2_final_xsdXSD Diagram of IfcBoundaryNodeConditionWarping in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcBoundaryNodeConditionWarping">
    <xs:complexContent>
        <xs:extension base="ifc:IfcBoundaryNodeCondition">
            <xs:sequence>
                <xs:element name="WarpingStiffness" type="ifc:IfcWarpingMomentMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
LinearStiffnessX ifc:LinearStiffnessX 0 (1)
LinearStiffnessY ifc:LinearStiffnessY 0 (1)
LinearStiffnessZ ifc:LinearStiffnessZ 0 (1)
RotationalStiffnessX ifc:RotationalStiffnessX 0 (1)
RotationalStiffnessY ifc:RotationalStiffnessY 0 (1)
RotationalStiffnessZ ifc:RotationalStiffnessZ 0 (1)
WarpingStiffness ifc:WarpingStiffness 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcBoundaryNodeConditionWarping
