Definition Type: ComplexType
Name: IfcCompoundPlaneAngleMeasure
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
Abstract

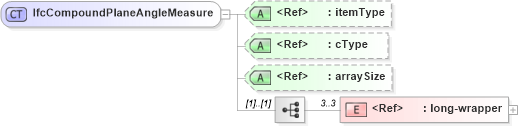

Collapse XSD Schema Diagram:
Drilldown into long-wrapper in schema ex_xsd Drilldown into arraySize in schema ex_xsd Drilldown into cType in schema ex_xsd Drilldown into itemType in schema ex_xsdXSD Diagram of IfcCompoundPlaneAngleMeasure in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcCompoundPlaneAngleMeasure">
    <xs:sequence>
        <xs:element ref="ex:long-wrapper" minOccurs="3" maxOccurs="3" />
    </xs:sequence>
    <xs:attribute ref="ex:itemType" fixed="ex:long-wrapper" />
    <xs:attribute ref="ex:cType" fixed="list" />
    <xs:attribute ref="ex:arraySize" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
long-wrapper ex:long-wrapper 3 3
Collapse Child Attributes:
Name Type Default Value Use
itemType ex:itemType (Optional)
cType ex:cType (Optional)
arraySize ex:arraySize Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcCompoundPlaneAngleMeasureifc:RefLatitude, ifc:RefLongitude,
