Definition Type: ComplexType
Name: IfcConnectionPortGeometry
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcConnectionGeometry
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

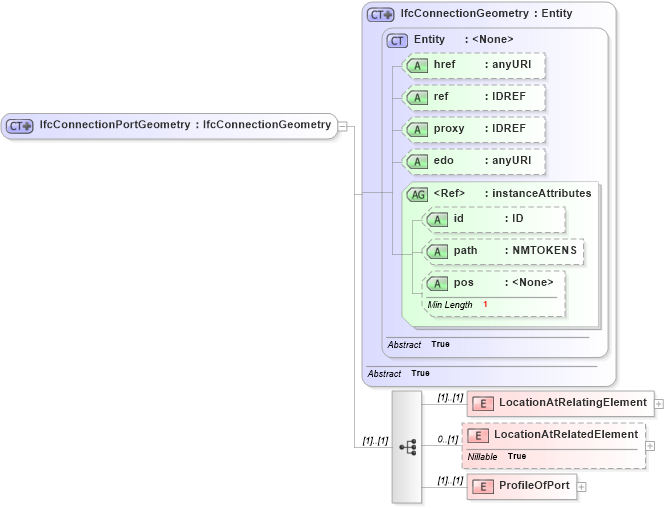

Drilldown into ProfileOfPort in schema ifc2x2_final_xsd Drilldown into LocationAtRelatedElement in schema ifc2x2_final_xsd Drilldown into LocationAtRelatingElement in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcConnectionGeometry in schema ifc2x2_final_xsdXSD Diagram of IfcConnectionPortGeometry in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcConnectionPortGeometry">
    <xs:complexContent>
        <xs:extension base="ifc:IfcConnectionGeometry">
            <xs:sequence>
                <xs:element name="LocationAtRelatingElement">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcAxis2Placement" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="LocationAtRelatedElement" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcAxis2Placement" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="ProfileOfPort">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcProfileDef" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LocationAtRelatingElement ifc:LocationAtRelatingElement (1) (1)
LocationAtRelatedElement ifc:LocationAtRelatedElement 0 (1)
ProfileOfPort ifc:ProfileOfPort (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcConnectionPortGeometry
