Definition Type: ComplexType
Name: IfcDraughtingCalloutElement
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

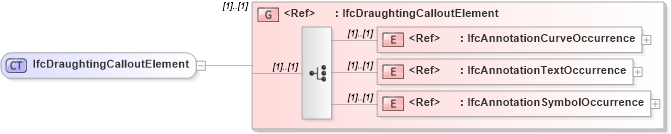

Drilldown into IfcAnnotationSymbolOccurrence in schema ifc2x2_final_xsd Drilldown into IfcAnnotationTextOccurrence in schema ifc2x2_final_xsd Drilldown into IfcAnnotationCurveOccurrence in schema ifc2x2_final_xsd Drilldown into IfcDraughtingCalloutElement in schema ifc2x2_final_xsdXSD Diagram of IfcDraughtingCalloutElement in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcDraughtingCalloutElement">
    <xs:group ref="ifc:IfcDraughtingCalloutElement" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IfcAnnotationCurveOccurrence ifc:IfcAnnotationCurveOccurrence (1) (1)
IfcAnnotationTextOccurrence ifc:IfcAnnotationTextOccurrence (1) (1)
IfcAnnotationSymbolOccurrence ifc:IfcAnnotationSymbolOccurrence (1) (1)
