Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcElectricalBaseProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcEnergyProperties
Containing Schema: IFC2X2_FINAL.xsd
Abstract

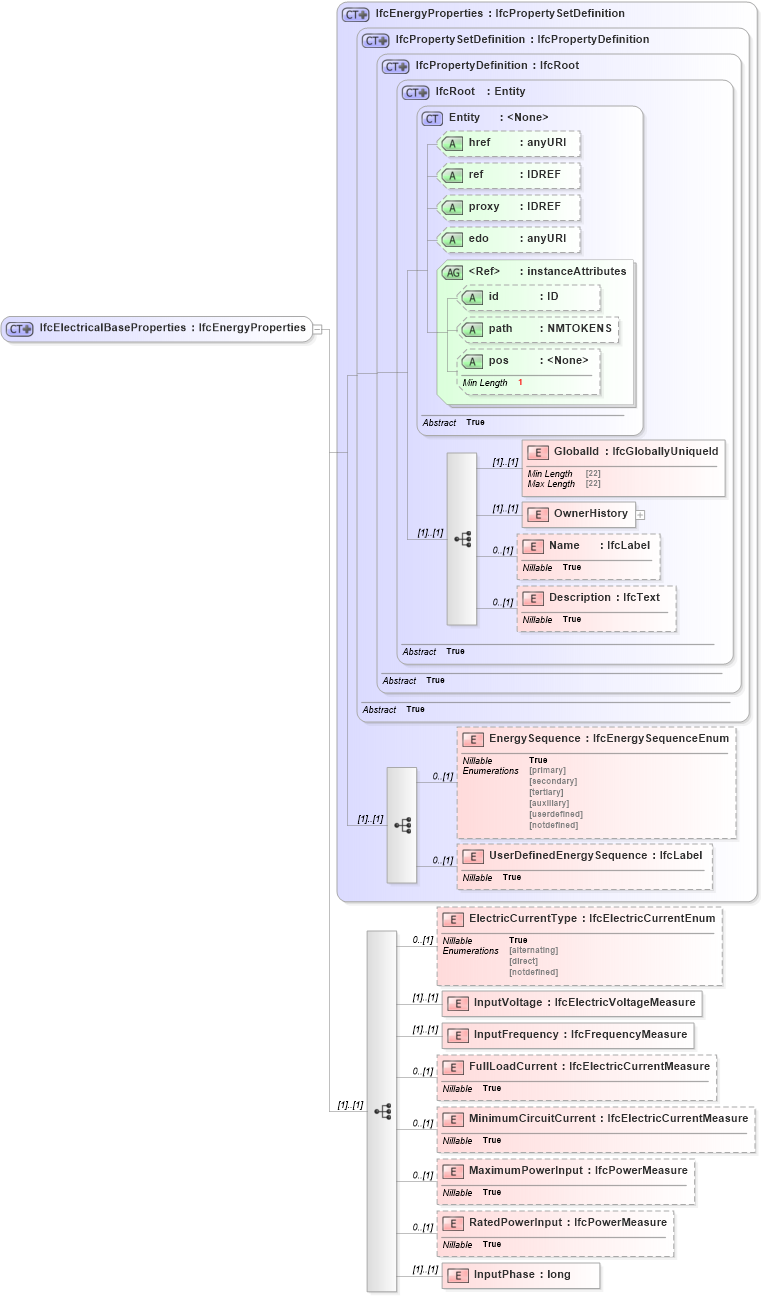

Collapse XSD Schema Diagram:
Drilldown into InputPhase in schema ifc2x2_final_xsd Drilldown into RatedPowerInput in schema ifc2x2_final_xsd Drilldown into MaximumPowerInput in schema ifc2x2_final_xsd Drilldown into MinimumCircuitCurrent in schema ifc2x2_final_xsd Drilldown into FullLoadCurrent in schema ifc2x2_final_xsd Drilldown into InputFrequency in schema ifc2x2_final_xsd Drilldown into InputVoltage in schema ifc2x2_final_xsd Drilldown into ElectricCurrentType in schema ifc2x2_final_xsd Drilldown into UserDefinedEnergySequence in schema ifc2x2_final_xsd Drilldown into EnergySequence in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into OwnerHistory in schema ifc2x2_final_xsd Drilldown into GlobalId in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRoot in schema ifc2x2_final_xsd Drilldown into IfcPropertyDefinition in schema ifc2x2_final_xsd Drilldown into IfcPropertySetDefinition in schema ifc2x2_final_xsd Drilldown into IfcEnergyProperties in schema ifc2x2_final_xsdXSD Diagram of IfcElectricalBaseProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcElectricalBaseProperties">
    <xs:complexContent>
        <xs:extension base="ifc:IfcEnergyProperties">
            <xs:sequence>
                <xs:element name="ElectricCurrentType" type="ifc:IfcElectricCurrentEnum" nillable="true" minOccurs="0" />
                <xs:element name="InputVoltage" type="ifc:IfcElectricVoltageMeasure" />
                <xs:element name="InputFrequency" type="ifc:IfcFrequencyMeasure" />
                <xs:element name="FullLoadCurrent" type="ifc:IfcElectricCurrentMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MinimumCircuitCurrent" type="ifc:IfcElectricCurrentMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MaximumPowerInput" type="ifc:IfcPowerMeasure" nillable="true" minOccurs="0" />
                <xs:element name="RatedPowerInput" type="ifc:IfcPowerMeasure" nillable="true" minOccurs="0" />
                <xs:element name="InputPhase" type="xs:long" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GlobalId ifc:GlobalId (1) (1)
OwnerHistory ifc:OwnerHistory (1) (1)
Name ifc:Name 0 (1)
Description ifc:Description 0 (1)
EnergySequence ifc:EnergySequence 0 (1)
UserDefinedEnergySequence ifc:UserDefinedEnergySequence 0 (1)
ElectricCurrentType ifc:ElectricCurrentType 0 (1)
InputVoltage ifc:InputVoltage (1) (1)
InputFrequency ifc:InputFrequency (1) (1)
FullLoadCurrent ifc:FullLoadCurrent 0 (1)
MinimumCircuitCurrent ifc:MinimumCircuitCurrent 0 (1)
MaximumPowerInput ifc:MaximumPowerInput 0 (1)
RatedPowerInput ifc:RatedPowerInput 0 (1)
InputPhase ifc:InputPhase (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcElectricalBaseProperties
