Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcExternalReference
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ex:Entity
Containing Schema: IFC2X2_FINAL.xsd
Abstract True

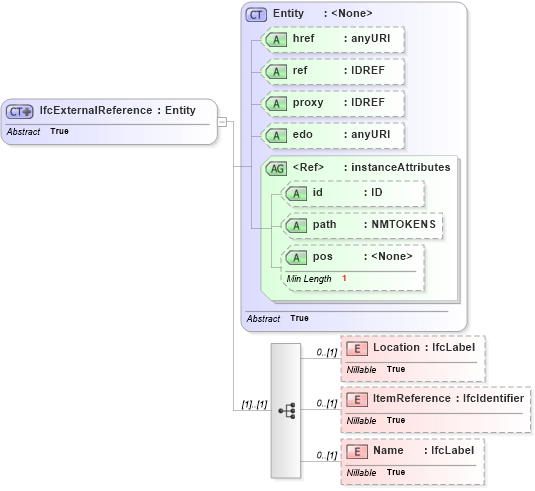

Collapse XSD Schema Diagram:
Drilldown into Name in schema ifc2x2_final_xsd Drilldown into ItemReference in schema ifc2x2_final_xsd Drilldown into Location in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsdXSD Diagram of IfcExternalReference in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcExternalReference" abstract="true">
    <xs:complexContent>
        <xs:extension base="ex:Entity">
            <xs:sequence>
                <xs:element name="Location" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="ItemReference" type="ifc:IfcIdentifier" nillable="true" minOccurs="0" />
                <xs:element name="Name" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Location ifc:Location 0 (1)
ItemReference ifc:ItemReference 0 (1)
Name ifc:Name 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcClassificationReference, ifc:IfcDocumentReference, ifc:IfcExternallyDefinedHatchStyle, ifc:IfcExternallyDefinedSufaceStyle, ifc:IfcExternallyDefinedSymbol, ifc:IfcExternallyDefinedTextFont, ifc:IfcExternalReferenceifc:IfcLibraryReference,
