Definition Type: ComplexType
Name: IfcFailureConnectionCondition
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcStructuralConnectionCondition
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

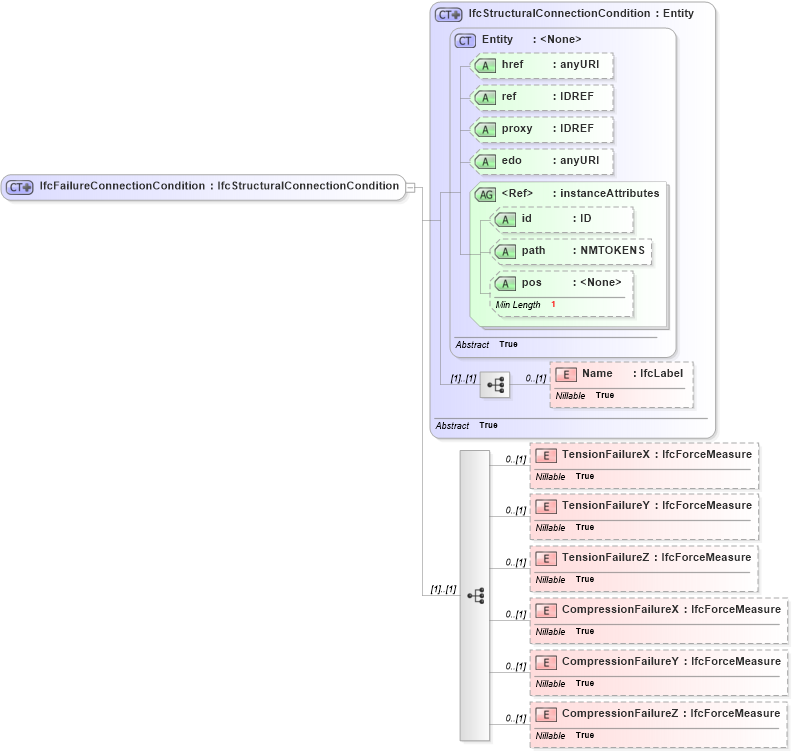

Drilldown into CompressionFailureZ in schema ifc2x2_final_xsd Drilldown into CompressionFailureY in schema ifc2x2_final_xsd Drilldown into CompressionFailureX in schema ifc2x2_final_xsd Drilldown into TensionFailureZ in schema ifc2x2_final_xsd Drilldown into TensionFailureY in schema ifc2x2_final_xsd Drilldown into TensionFailureX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcStructuralConnectionCondition in schema ifc2x2_final_xsdXSD Diagram of IfcFailureConnectionCondition in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcFailureConnectionCondition">
    <xs:complexContent>
        <xs:extension base="ifc:IfcStructuralConnectionCondition">
            <xs:sequence>
                <xs:element name="TensionFailureX" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="TensionFailureY" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="TensionFailureZ" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="CompressionFailureX" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="CompressionFailureY" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="CompressionFailureZ" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
TensionFailureX ifc:TensionFailureX 0 (1)
TensionFailureY ifc:TensionFailureY 0 (1)
TensionFailureZ ifc:TensionFailureZ 0 (1)
CompressionFailureX ifc:CompressionFailureX 0 (1)
CompressionFailureY ifc:CompressionFailureY 0 (1)
CompressionFailureZ ifc:CompressionFailureZ 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
