Definition Type: ComplexType
Name: IfcGeneralMaterialProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcMaterialProperties
Containing Schema: IFC2X2_FINAL.xsd
Abstract

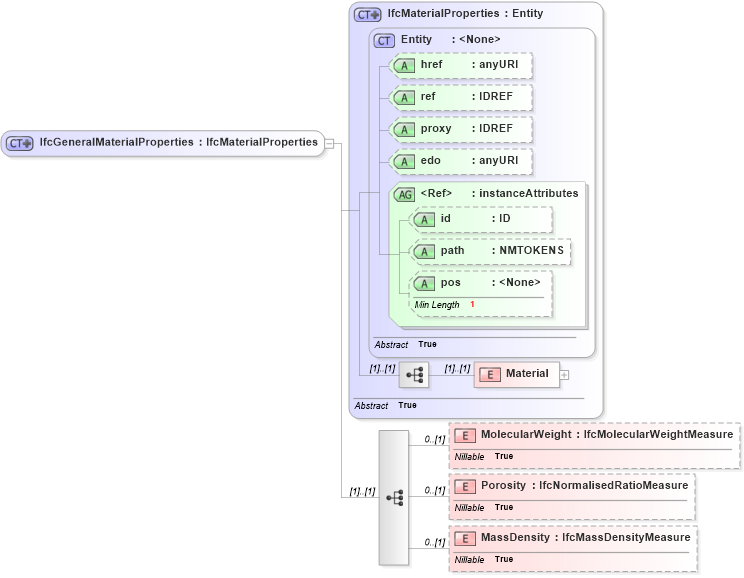

Collapse XSD Schema Diagram:
Drilldown into MassDensity in schema ifc2x2_final_xsd Drilldown into Porosity in schema ifc2x2_final_xsd Drilldown into MolecularWeight in schema ifc2x2_final_xsd Drilldown into Material in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcMaterialProperties in schema ifc2x2_final_xsdXSD Diagram of IfcGeneralMaterialProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcGeneralMaterialProperties">
    <xs:complexContent>
        <xs:extension base="ifc:IfcMaterialProperties">
            <xs:sequence>
                <xs:element name="MolecularWeight" type="ifc:IfcMolecularWeightMeasure" nillable="true" minOccurs="0" />
                <xs:element name="Porosity" type="ifc:IfcNormalisedRatioMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MassDensity" type="ifc:IfcMassDensityMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Material ifc:Material (1) (1)
MolecularWeight ifc:MolecularWeight 0 (1)
Porosity ifc:Porosity 0 (1)
MassDensity ifc:MassDensity 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcGeneralMaterialProperties
