Definition Type: ComplexType
Name: IfcGeometricRepresentationSubContext-temp
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcGeometricRepresentationContext
Containing Schema: IFC2X2_FINAL.xsd
Abstract True

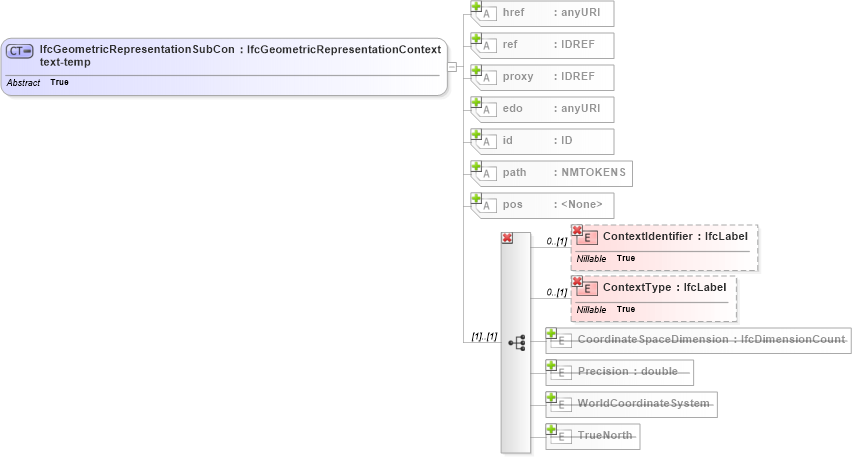

Collapse XSD Schema Diagram:
Drilldown into TrueNorth in schema ifc2x2_final_xsd Drilldown into WorldCoordinateSystem in schema ifc2x2_final_xsd Drilldown into Precision in schema ifc2x2_final_xsd Drilldown into CoordinateSpaceDimension in schema ifc2x2_final_xsd Drilldown into ContextType in schema ifc2x2_final_xsd Drilldown into ContextIdentifier in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsdXSD Diagram of IfcGeometricRepresentationSubContext-temp in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcGeometricRepresentationSubContext-temp" abstract="true">
    <xs:complexContent>
        <xs:restriction base="ifc:IfcGeometricRepresentationContext">
            <xs:sequence>
                <xs:element name="ContextIdentifier" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="ContextType" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:restriction>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContextIdentifier ifc:ContextIdentifier 0 (1)
ContextType ifc:ContextType 0 (1)
CoordinateSpaceDimension ifc:CoordinateSpaceDimension 0 (1)
Precision ifc:Precision 0 (1)
WorldCoordinateSystem ifc:WorldCoordinateSystem 0 (1)
TrueNorth ifc:TrueNorth 0 (1)
ContextIdentifier ifc:ContextIdentifier 0 (1)
ContextType ifc:ContextType 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcGeometricRepresentationSubContext
