Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: IfcPixelTexture
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcPixelTexture
Containing Schema: IFC2X2_FINAL.xsd
Abstract

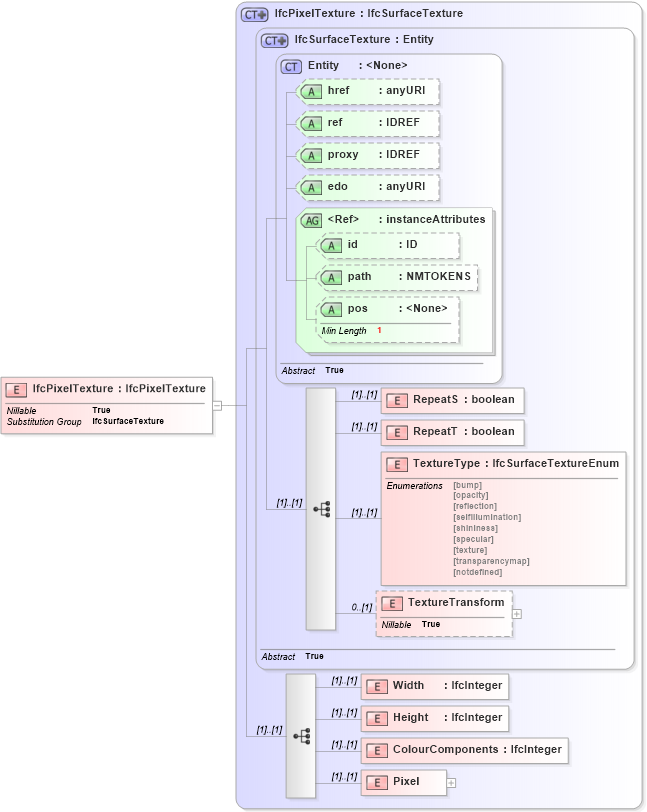

Collapse XSD Schema Diagram:
Drilldown into Pixel in schema ifc2x2_final_xsd Drilldown into ColourComponents in schema ifc2x2_final_xsd Drilldown into Height in schema ifc2x2_final_xsd Drilldown into Width in schema ifc2x2_final_xsd Drilldown into TextureTransform in schema ifc2x2_final_xsd Drilldown into TextureType in schema ifc2x2_final_xsd Drilldown into RepeatT in schema ifc2x2_final_xsd Drilldown into RepeatS in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcSurfaceTexture in schema ifc2x2_final_xsd Drilldown into IfcPixelTexture in schema ifc2x2_final_xsdXSD Diagram of IfcPixelTexture in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcPixelTexture" type="ifc:IfcPixelTexture" substitutionGroup="ifc:IfcSurfaceTexture" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RepeatS ifc:RepeatS (1) (1)
RepeatT ifc:RepeatT (1) (1)
TextureType ifc:TextureType (1) (1)
TextureTransform ifc:TextureTransform 0 (1)
Width ifc:Width (1) (1)
Height ifc:Height (1) (1)
ColourComponents ifc:ColourComponents (1) (1)
Pixel ifc:Pixel (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcSurfaceTexture
