Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcProject
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcObject
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

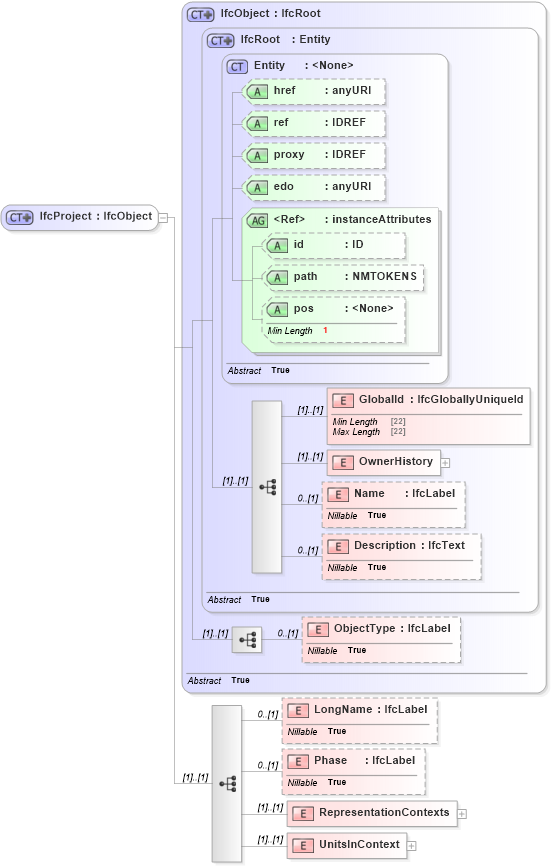

Drilldown into UnitsInContext in schema ifc2x2_final_xsd Drilldown into RepresentationContexts in schema ifc2x2_final_xsd Drilldown into Phase in schema ifc2x2_final_xsd Drilldown into LongName in schema ifc2x2_final_xsd Drilldown into ObjectType in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into OwnerHistory in schema ifc2x2_final_xsd Drilldown into GlobalId in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRoot in schema ifc2x2_final_xsd Drilldown into IfcObject in schema ifc2x2_final_xsdXSD Diagram of IfcProject in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcProject">
    <xs:complexContent>
        <xs:extension base="ifc:IfcObject">
            <xs:sequence>
                <xs:element name="LongName" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="Phase" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="RepresentationContexts">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="ifc:IfcRepresentationContext" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attribute ref="ex:itemType" fixed="ifc:IfcRepresentationContext" />
                        <xs:attribute ref="ex:cType" fixed="set" />
                        <xs:attribute ref="ex:arraySize" use="optional" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="UnitsInContext">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcUnitAssignment" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GlobalId ifc:GlobalId (1) (1)
OwnerHistory ifc:OwnerHistory (1) (1)
Name ifc:Name 0 (1)
Description ifc:Description 0 (1)
ObjectType ifc:ObjectType 0 (1)
LongName ifc:LongName 0 (1)
Phase ifc:Phase 0 (1)
RepresentationContexts ifc:RepresentationContexts (1) (1)
UnitsInContext ifc:UnitsInContext (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcProject
