Definition Type: Element
Name: IfcPropertyBoundedValue
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcPropertyBoundedValue
Containing Schema: IFC2X2_FINAL.xsd
Abstract

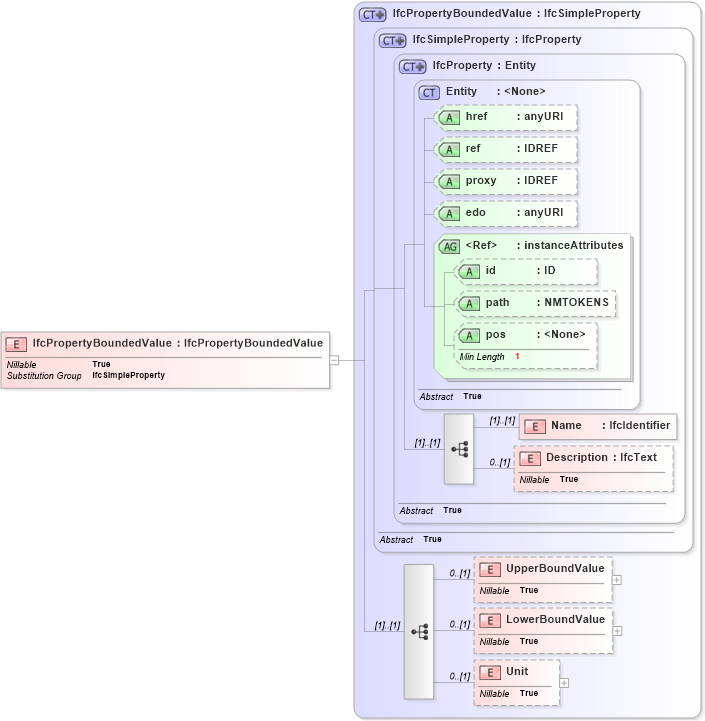

Collapse XSD Schema Diagram:
Drilldown into Unit in schema ifc2x2_final_xsd Drilldown into LowerBoundValue in schema ifc2x2_final_xsd Drilldown into UpperBoundValue in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcProperty in schema ifc2x2_final_xsd Drilldown into IfcSimpleProperty in schema ifc2x2_final_xsd Drilldown into IfcPropertyBoundedValue in schema ifc2x2_final_xsdXSD Diagram of IfcPropertyBoundedValue in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcPropertyBoundedValue" type="ifc:IfcPropertyBoundedValue" substitutionGroup="ifc:IfcSimpleProperty" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name (1) (1)
Description ifc:Description 0 (1)
UpperBoundValue ifc:UpperBoundValue 0 (1)
LowerBoundValue ifc:LowerBoundValue 0 (1)
Unit ifc:Unit 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcSimpleProperty
