Definition Type: ComplexType
Name: IfcReinforcementBarProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ex:Entity
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

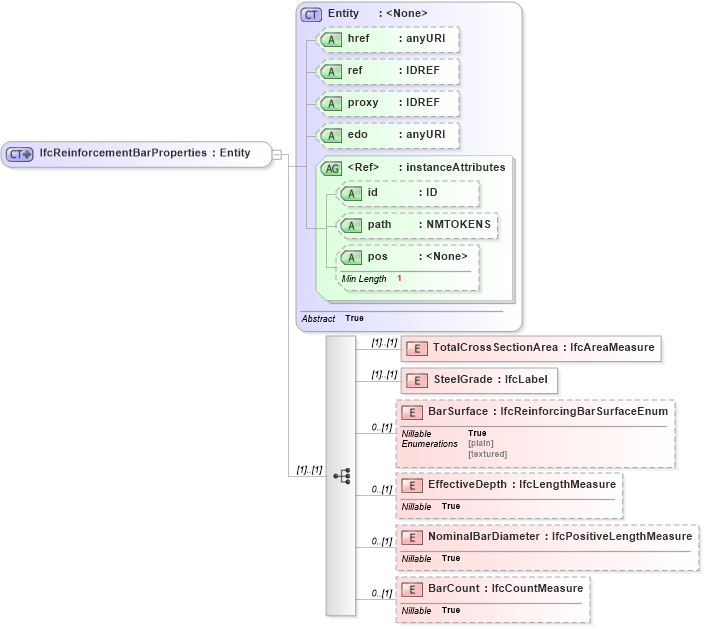

Drilldown into BarCount in schema ifc2x2_final_xsd Drilldown into NominalBarDiameter in schema ifc2x2_final_xsd Drilldown into EffectiveDepth in schema ifc2x2_final_xsd Drilldown into BarSurface in schema ifc2x2_final_xsd Drilldown into SteelGrade in schema ifc2x2_final_xsd Drilldown into TotalCrossSectionArea in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsdXSD Diagram of IfcReinforcementBarProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcReinforcementBarProperties">
    <xs:complexContent>
        <xs:extension base="ex:Entity">
            <xs:sequence>
                <xs:element name="TotalCrossSectionArea" type="ifc:IfcAreaMeasure" />
                <xs:element name="SteelGrade" type="ifc:IfcLabel" />
                <xs:element name="BarSurface" type="ifc:IfcReinforcingBarSurfaceEnum" nillable="true" minOccurs="0" />
                <xs:element name="EffectiveDepth" type="ifc:IfcLengthMeasure" nillable="true" minOccurs="0" />
                <xs:element name="NominalBarDiameter" type="ifc:IfcPositiveLengthMeasure" nillable="true" minOccurs="0" />
                <xs:element name="BarCount" type="ifc:IfcCountMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TotalCrossSectionArea ifc:TotalCrossSectionArea (1) (1)
SteelGrade ifc:SteelGrade (1) (1)
BarSurface ifc:BarSurface 0 (1)
EffectiveDepth ifc:EffectiveDepth 0 (1)
NominalBarDiameter ifc:NominalBarDiameter 0 (1)
BarCount ifc:BarCount 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
