Definition Type: ComplexType
Name: IfcRelConnectsPathElements
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcRelConnectsElements
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

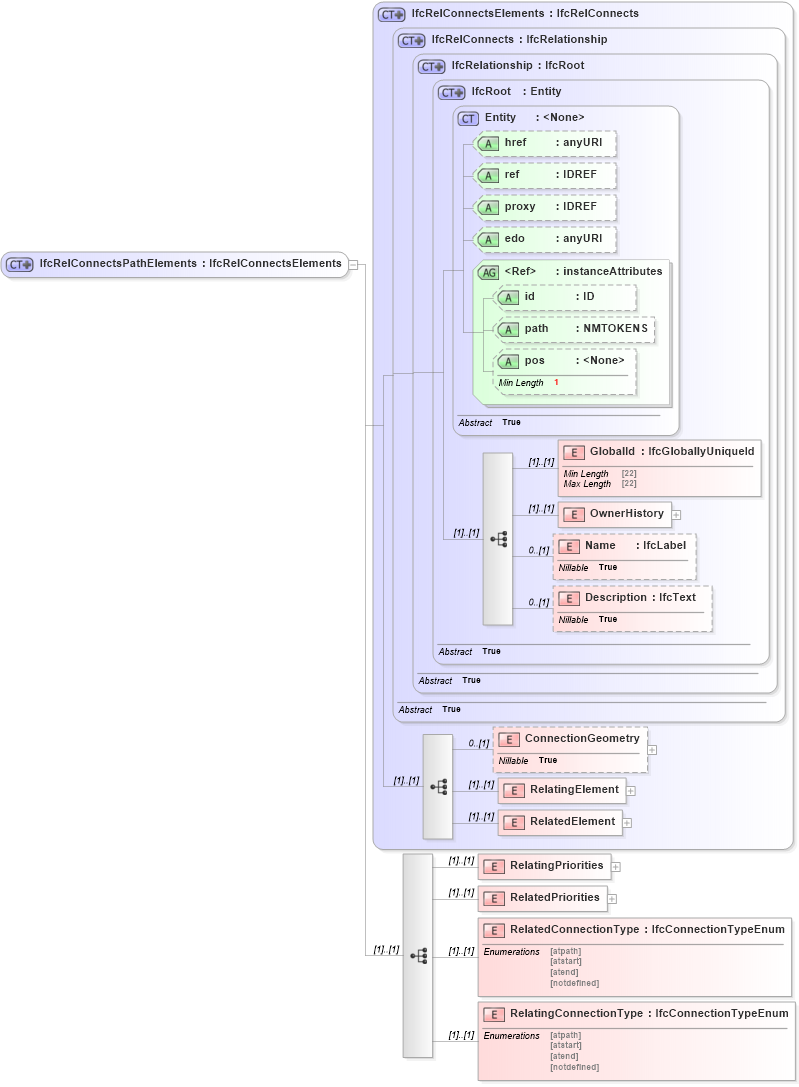

Drilldown into RelatingConnectionType in schema ifc2x2_final_xsd Drilldown into RelatedConnectionType in schema ifc2x2_final_xsd Drilldown into RelatedPriorities in schema ifc2x2_final_xsd Drilldown into RelatingPriorities in schema ifc2x2_final_xsd Drilldown into RelatedElement in schema ifc2x2_final_xsd Drilldown into RelatingElement in schema ifc2x2_final_xsd Drilldown into ConnectionGeometry in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into OwnerHistory in schema ifc2x2_final_xsd Drilldown into GlobalId in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRoot in schema ifc2x2_final_xsd Drilldown into IfcRelationship in schema ifc2x2_final_xsd Drilldown into IfcRelConnects in schema ifc2x2_final_xsd Drilldown into IfcRelConnectsElements in schema ifc2x2_final_xsdXSD Diagram of IfcRelConnectsPathElements in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcRelConnectsPathElements">
    <xs:complexContent>
        <xs:extension base="ifc:IfcRelConnectsElements">
            <xs:sequence>
                <xs:element name="RelatingPriorities">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="ex:long-wrapper" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attribute ref="ex:itemType" fixed="ex:long-wrapper" />
                        <xs:attribute ref="ex:cType" fixed="list" />
                        <xs:attribute ref="ex:arraySize" use="optional" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="RelatedPriorities">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="ex:long-wrapper" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attribute ref="ex:itemType" fixed="ex:long-wrapper" />
                        <xs:attribute ref="ex:cType" fixed="list" />
                        <xs:attribute ref="ex:arraySize" use="optional" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="RelatedConnectionType" type="ifc:IfcConnectionTypeEnum" />
                <xs:element name="RelatingConnectionType" type="ifc:IfcConnectionTypeEnum" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GlobalId ifc:GlobalId (1) (1)
OwnerHistory ifc:OwnerHistory (1) (1)
Name ifc:Name 0 (1)
Description ifc:Description 0 (1)
ConnectionGeometry ifc:ConnectionGeometry 0 (1)
RelatingElement ifc:RelatingElement (1) (1)
RelatedElement ifc:RelatedElement (1) (1)
RelatingPriorities ifc:RelatingPriorities (1) (1)
RelatedPriorities ifc:RelatedPriorities (1) (1)
RelatedConnectionType ifc:RelatedConnectionType (1) (1)
RelatingConnectionType ifc:RelatingConnectionType (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
