Definition Type: ComplexType
Name: IfcRelSpaceBoundary
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcRelConnects
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

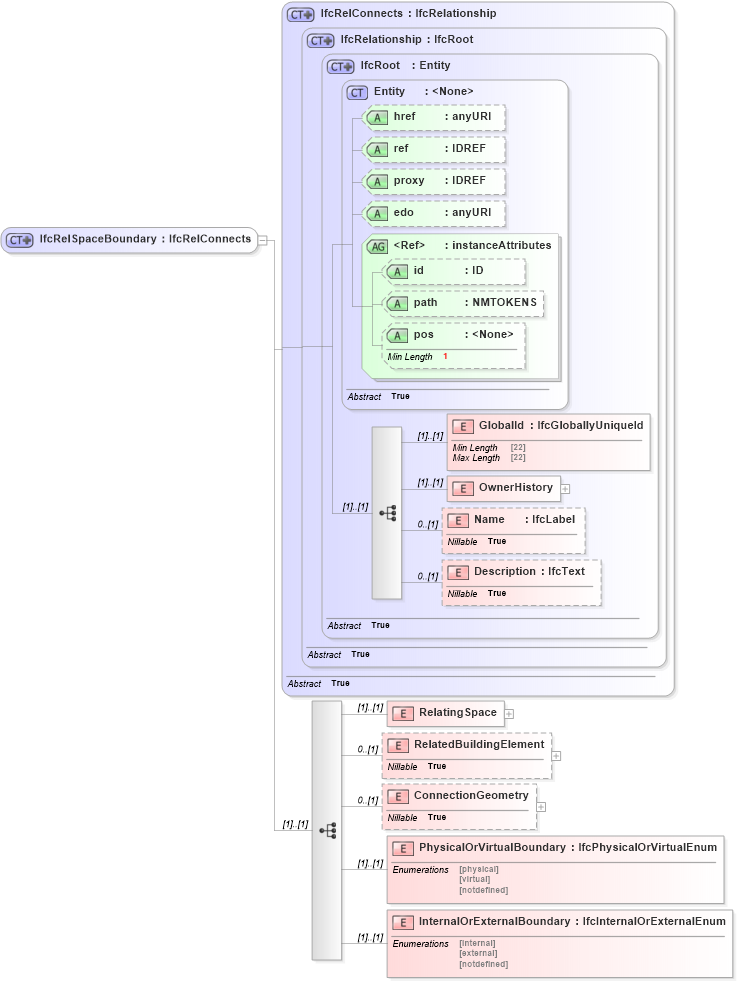

Drilldown into InternalOrExternalBoundary in schema ifc2x2_final_xsd Drilldown into PhysicalOrVirtualBoundary in schema ifc2x2_final_xsd Drilldown into ConnectionGeometry in schema ifc2x2_final_xsd Drilldown into RelatedBuildingElement in schema ifc2x2_final_xsd Drilldown into RelatingSpace in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into OwnerHistory in schema ifc2x2_final_xsd Drilldown into GlobalId in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRoot in schema ifc2x2_final_xsd Drilldown into IfcRelationship in schema ifc2x2_final_xsd Drilldown into IfcRelConnects in schema ifc2x2_final_xsdXSD Diagram of IfcRelSpaceBoundary in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcRelSpaceBoundary">
    <xs:complexContent>
        <xs:extension base="ifc:IfcRelConnects">
            <xs:sequence>
                <xs:element name="RelatingSpace">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcSpace" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="RelatedBuildingElement" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcElement" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="ConnectionGeometry" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcConnectionGeometry" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="PhysicalOrVirtualBoundary" type="ifc:IfcPhysicalOrVirtualEnum" />
                <xs:element name="InternalOrExternalBoundary" type="ifc:IfcInternalOrExternalEnum" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GlobalId ifc:GlobalId (1) (1)
OwnerHistory ifc:OwnerHistory (1) (1)
Name ifc:Name 0 (1)
Description ifc:Description 0 (1)
RelatingSpace ifc:RelatingSpace (1) (1)
RelatedBuildingElement ifc:RelatedBuildingElement 0 (1)
ConnectionGeometry ifc:ConnectionGeometry 0 (1)
PhysicalOrVirtualBoundary ifc:PhysicalOrVirtualBoundary (1) (1)
InternalOrExternalBoundary ifc:InternalOrExternalBoundary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
