Definition Type: ComplexType
Name: IfcSpaceThermalLoadProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcPropertySetDefinition
Containing Schema: IFC2X2_FINAL.xsd
Abstract

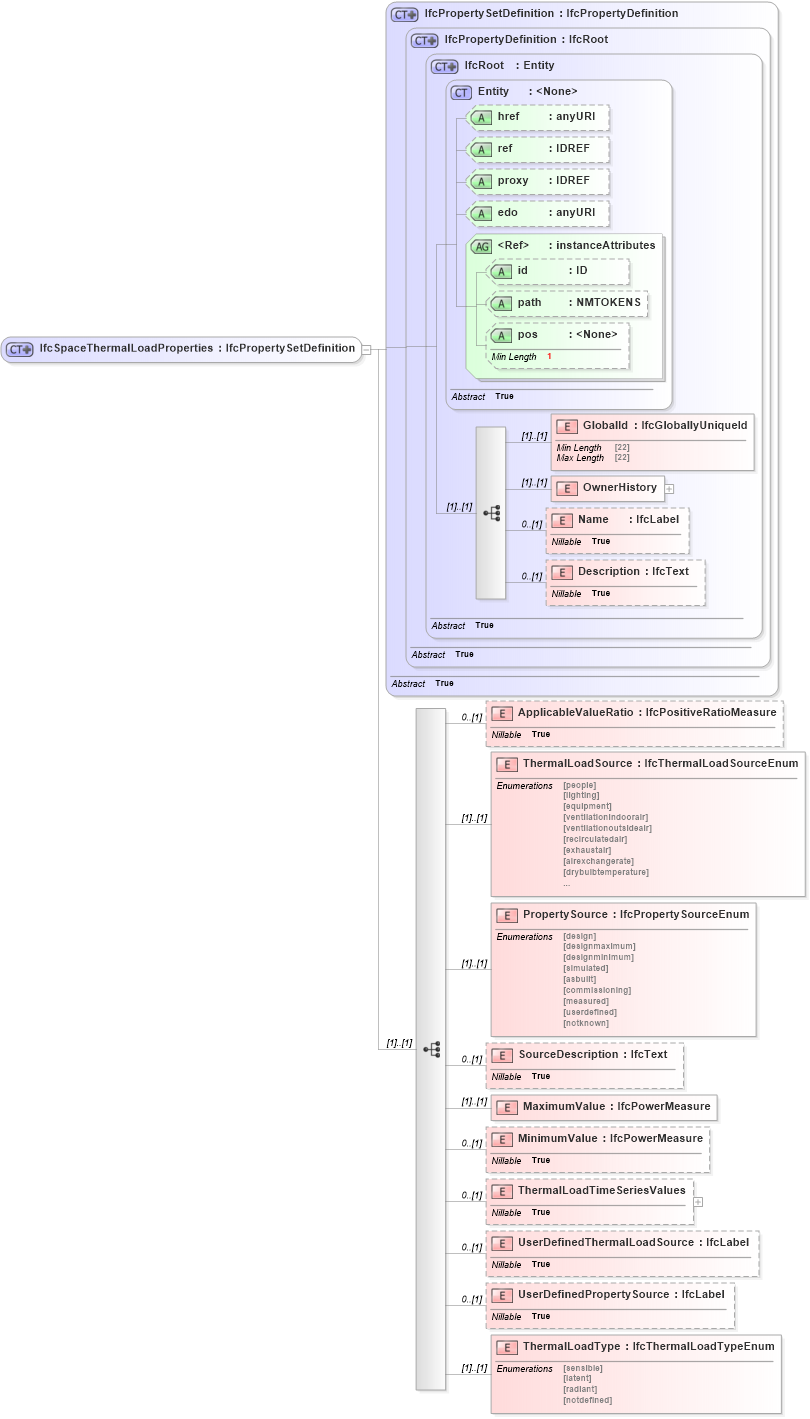

Collapse XSD Schema Diagram:
Drilldown into ThermalLoadType in schema ifc2x2_final_xsd Drilldown into UserDefinedPropertySource in schema ifc2x2_final_xsd Drilldown into UserDefinedThermalLoadSource in schema ifc2x2_final_xsd Drilldown into ThermalLoadTimeSeriesValues in schema ifc2x2_final_xsd Drilldown into MinimumValue in schema ifc2x2_final_xsd Drilldown into MaximumValue in schema ifc2x2_final_xsd Drilldown into SourceDescription in schema ifc2x2_final_xsd Drilldown into PropertySource in schema ifc2x2_final_xsd Drilldown into ThermalLoadSource in schema ifc2x2_final_xsd Drilldown into ApplicableValueRatio in schema ifc2x2_final_xsd Drilldown into Description in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into OwnerHistory in schema ifc2x2_final_xsd Drilldown into GlobalId in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcRoot in schema ifc2x2_final_xsd Drilldown into IfcPropertyDefinition in schema ifc2x2_final_xsd Drilldown into IfcPropertySetDefinition in schema ifc2x2_final_xsdXSD Diagram of IfcSpaceThermalLoadProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcSpaceThermalLoadProperties">
    <xs:complexContent>
        <xs:extension base="ifc:IfcPropertySetDefinition">
            <xs:sequence>
                <xs:element name="ApplicableValueRatio" type="ifc:IfcPositiveRatioMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ThermalLoadSource" type="ifc:IfcThermalLoadSourceEnum" />
                <xs:element name="PropertySource" type="ifc:IfcPropertySourceEnum" />
                <xs:element name="SourceDescription" type="ifc:IfcText" nillable="true" minOccurs="0" />
                <xs:element name="MaximumValue" type="ifc:IfcPowerMeasure" />
                <xs:element name="MinimumValue" type="ifc:IfcPowerMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ThermalLoadTimeSeriesValues" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:choice>
                            <xs:element ref="ifc:IfcTimeSeries" />
                        </xs:choice>
                    </xs:complexType>
                </xs:element>
                <xs:element name="UserDefinedThermalLoadSource" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="UserDefinedPropertySource" type="ifc:IfcLabel" nillable="true" minOccurs="0" />
                <xs:element name="ThermalLoadType" type="ifc:IfcThermalLoadTypeEnum" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GlobalId ifc:GlobalId (1) (1)
OwnerHistory ifc:OwnerHistory (1) (1)
Name ifc:Name 0 (1)
Description ifc:Description 0 (1)
ApplicableValueRatio ifc:ApplicableValueRatio 0 (1)
ThermalLoadSource ifc:ThermalLoadSource (1) (1)
PropertySource ifc:PropertySource (1) (1)
SourceDescription ifc:SourceDescription 0 (1)
MaximumValue ifc:MaximumValue (1) (1)
MinimumValue ifc:MinimumValue 0 (1)
ThermalLoadTimeSeriesValues ifc:ThermalLoadTimeSeriesValues 0 (1)
UserDefinedThermalLoadSource ifc:UserDefinedThermalLoadSource 0 (1)
UserDefinedPropertySource ifc:UserDefinedPropertySource 0 (1)
ThermalLoadType ifc:ThermalLoadType (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcSpaceThermalLoadProperties
