Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcStructuralLoadSingleForce
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcStructuralLoadStatic
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

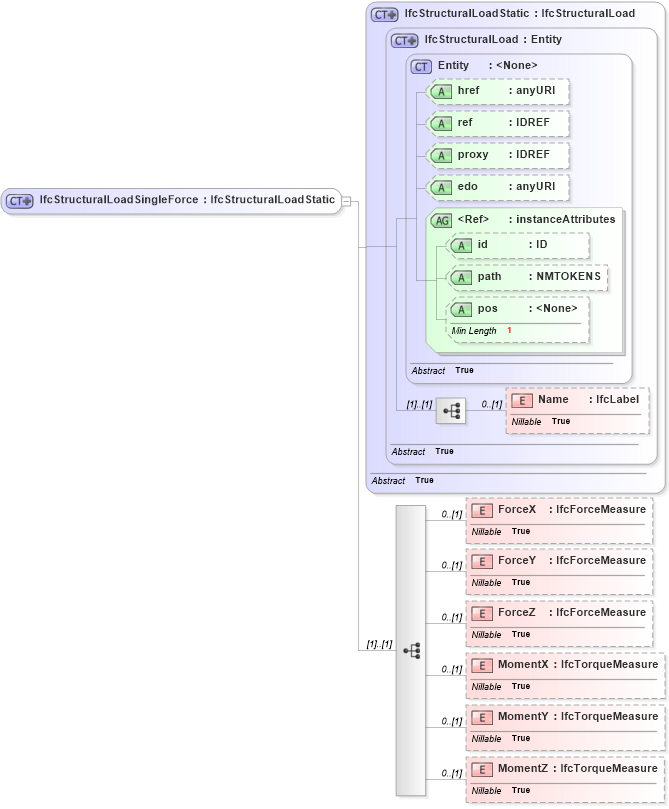

Drilldown into MomentZ in schema ifc2x2_final_xsd Drilldown into MomentY in schema ifc2x2_final_xsd Drilldown into MomentX in schema ifc2x2_final_xsd Drilldown into ForceZ in schema ifc2x2_final_xsd Drilldown into ForceY in schema ifc2x2_final_xsd Drilldown into ForceX in schema ifc2x2_final_xsd Drilldown into Name in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcStructuralLoad in schema ifc2x2_final_xsd Drilldown into IfcStructuralLoadStatic in schema ifc2x2_final_xsdXSD Diagram of IfcStructuralLoadSingleForce in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcStructuralLoadSingleForce">
    <xs:complexContent>
        <xs:extension base="ifc:IfcStructuralLoadStatic">
            <xs:sequence>
                <xs:element name="ForceX" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ForceY" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ForceZ" type="ifc:IfcForceMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MomentX" type="ifc:IfcTorqueMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MomentY" type="ifc:IfcTorqueMeasure" nillable="true" minOccurs="0" />
                <xs:element name="MomentZ" type="ifc:IfcTorqueMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name ifc:Name 0 (1)
ForceX ifc:ForceX 0 (1)
ForceY ifc:ForceY 0 (1)
ForceZ ifc:ForceZ 0 (1)
MomentX ifc:MomentX 0 (1)
MomentY ifc:MomentY 0 (1)
MomentZ ifc:MomentZ 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcStructuralLoadSingleForceifc:IfcStructuralLoadSingleForceWarping,
