Definition Type: ComplexType
Name: IfcSurfaceStyleRendering
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcSurfaceStyleShading
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

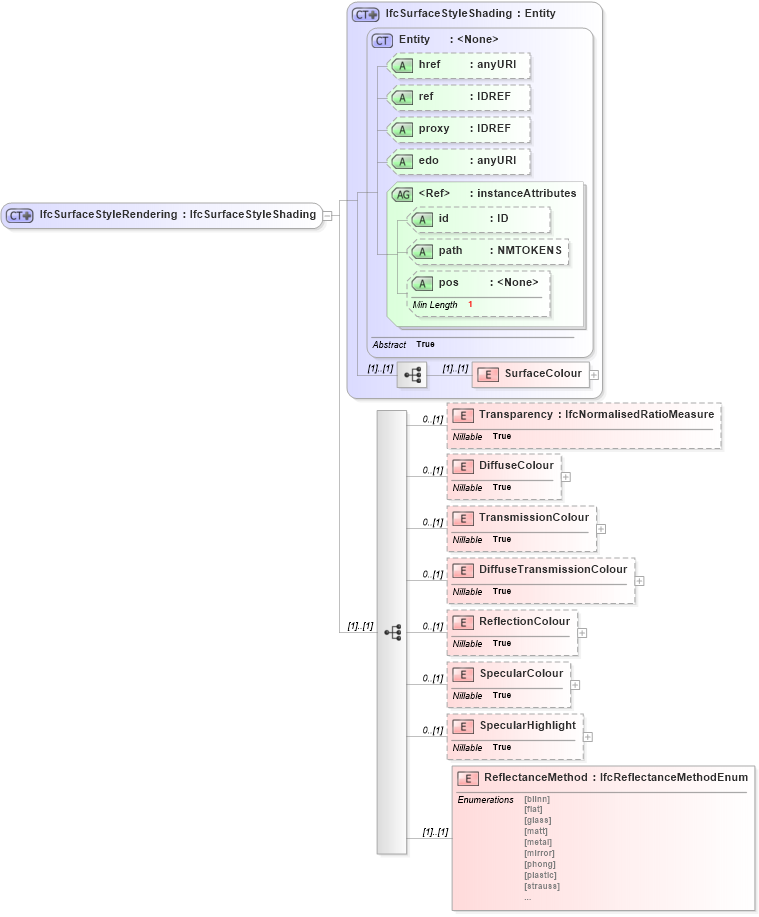

Drilldown into ReflectanceMethod in schema ifc2x2_final_xsd Drilldown into SpecularHighlight in schema ifc2x2_final_xsd Drilldown into SpecularColour in schema ifc2x2_final_xsd Drilldown into ReflectionColour in schema ifc2x2_final_xsd Drilldown into DiffuseTransmissionColour in schema ifc2x2_final_xsd Drilldown into TransmissionColour in schema ifc2x2_final_xsd Drilldown into DiffuseColour in schema ifc2x2_final_xsd Drilldown into Transparency in schema ifc2x2_final_xsd Drilldown into SurfaceColour in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcSurfaceStyleShading in schema ifc2x2_final_xsdXSD Diagram of IfcSurfaceStyleRendering in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcSurfaceStyleRendering">
    <xs:complexContent>
        <xs:extension base="ifc:IfcSurfaceStyleShading">
            <xs:sequence>
                <xs:element name="Transparency" type="ifc:IfcNormalisedRatioMeasure" nillable="true" minOccurs="0" />
                <xs:element name="DiffuseColour" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcColourOrFactor" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="TransmissionColour" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcColourOrFactor" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="DiffuseTransmissionColour" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcColourOrFactor" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="ReflectionColour" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcColourOrFactor" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="SpecularColour" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcColourOrFactor" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="SpecularHighlight" nillable="true" minOccurs="0">
                    <xs:complexType>
                        <xs:group ref="ifc:IfcSpecularHighlightSelect" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="ReflectanceMethod" type="ifc:IfcReflectanceMethodEnum" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SurfaceColour ifc:SurfaceColour (1) (1)
Transparency ifc:Transparency 0 (1)
DiffuseColour ifc:DiffuseColour 0 (1)
TransmissionColour ifc:TransmissionColour 0 (1)
DiffuseTransmissionColour ifc:DiffuseTransmissionColour 0 (1)
ReflectionColour ifc:ReflectionColour 0 (1)
SpecularColour ifc:SpecularColour 0 (1)
SpecularHighlight ifc:SpecularHighlight 0 (1)
ReflectanceMethod ifc:ReflectanceMethod (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
