Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: IfcTextStyleWithBoxCharacteristics
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcTextStyleWithBoxCharacteristics
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

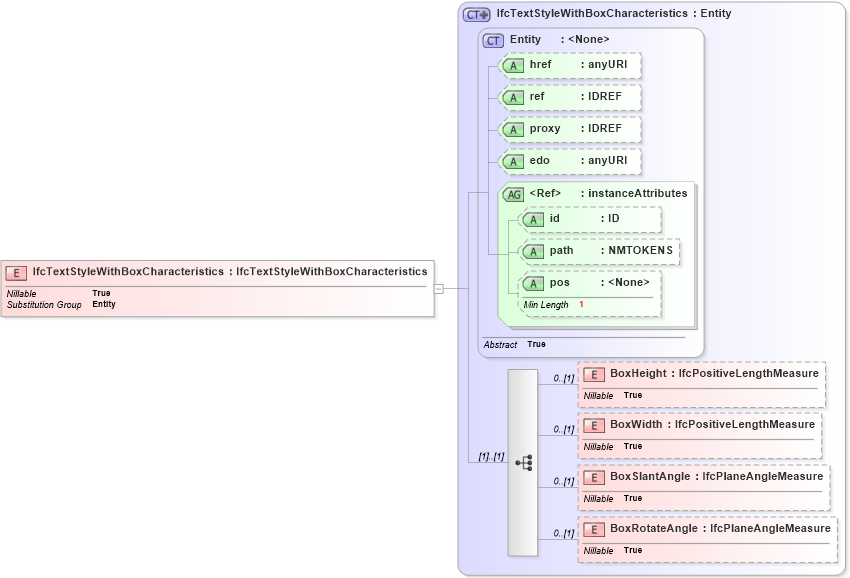

Drilldown into BoxRotateAngle in schema ifc2x2_final_xsd Drilldown into BoxSlantAngle in schema ifc2x2_final_xsd Drilldown into BoxWidth in schema ifc2x2_final_xsd Drilldown into BoxHeight in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcTextStyleWithBoxCharacteristics in schema ifc2x2_final_xsdXSD Diagram of IfcTextStyleWithBoxCharacteristics in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="IfcTextStyleWithBoxCharacteristics" type="ifc:IfcTextStyleWithBoxCharacteristics" substitutionGroup="ex:Entity" nillable="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BoxHeight ifc:BoxHeight 0 (1)
BoxWidth ifc:BoxWidth 0 (1)
BoxSlantAngle ifc:BoxSlantAngle 0 (1)
BoxRotateAngle ifc:BoxRotateAngle 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ex:Entity
