Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: IfcThermalMaterialProperties
Namespace: http://niem.gov/niem/external/iai-ifc/RC2/ifc/dhs-gmo/1.0.0
Type: ifc:IfcMaterialProperties
Containing Schema: IFC2X2_FINAL.xsd
Abstract
Collapse XSD Schema Diagram:

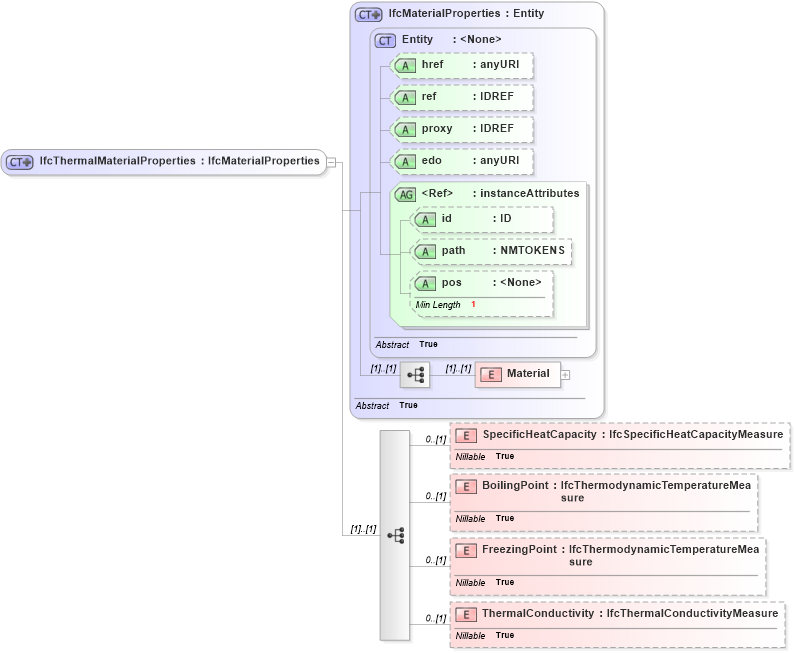

Drilldown into ThermalConductivity in schema ifc2x2_final_xsd Drilldown into FreezingPoint in schema ifc2x2_final_xsd Drilldown into BoilingPoint in schema ifc2x2_final_xsd Drilldown into SpecificHeatCapacity in schema ifc2x2_final_xsd Drilldown into Material in schema ifc2x2_final_xsd Drilldown into pos in schema ex_xsd Drilldown into path in schema ex_xsd Drilldown into id in schema ex_xsd Drilldown into instanceAttributes in schema ex_xsd Drilldown into edo in schema ex_xsd Drilldown into proxy in schema ex_xsd Drilldown into ref in schema ex_xsd Drilldown into href in schema ex_xsd Drilldown into Entity in schema ex_xsd Drilldown into IfcMaterialProperties in schema ifc2x2_final_xsdXSD Diagram of IfcThermalMaterialProperties in schema ifc2x2_final_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="IfcThermalMaterialProperties">
    <xs:complexContent>
        <xs:extension base="ifc:IfcMaterialProperties">
            <xs:sequence>
                <xs:element name="SpecificHeatCapacity" type="ifc:IfcSpecificHeatCapacityMeasure" nillable="true" minOccurs="0" />
                <xs:element name="BoilingPoint" type="ifc:IfcThermodynamicTemperatureMeasure" nillable="true" minOccurs="0" />
                <xs:element name="FreezingPoint" type="ifc:IfcThermodynamicTemperatureMeasure" nillable="true" minOccurs="0" />
                <xs:element name="ThermalConductivity" type="ifc:IfcThermalConductivityMeasure" nillable="true" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Material ifc:Material (1) (1)
SpecificHeatCapacity ifc:SpecificHeatCapacity 0 (1)
BoilingPoint ifc:BoilingPoint 0 (1)
FreezingPoint ifc:FreezingPoint 0 (1)
ThermalConductivity ifc:ThermalConductivity 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
href ex:href Optional
ref ex:ref Optional
proxy ex:proxy Optional
edo ex:edo Optional
id ex:id Optional
path ex:path Optional
pos ex:pos Optional
Collapse Derivation Tree:
Collapse References:
ifc:IfcThermalMaterialProperties
