Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: ImageAugmentationType
Namespace: http://niem.gov/niem/domains/jxdm/4.0
Type: s:AugmentationType
Containing Schema: jxdm.xsd
Abstract
Documentation:
A data type for additional information about an image.

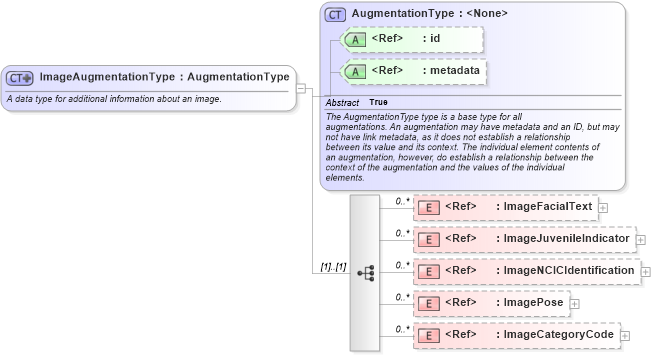

Collapse XSD Schema Diagram:
Drilldown into ImageCategoryCode in schema jxdm_xsd Drilldown into ImagePose in schema jxdm_xsd Drilldown into ImageNCICIdentification in schema jxdm_xsd Drilldown into ImageJuvenileIndicator in schema jxdm_xsd Drilldown into ImageFacialText in schema jxdm_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into AugmentationType in schema structures_xsdXSD Diagram of ImageAugmentationType in schema jxdm_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="ImageAugmentationType">
    <xsd:annotation>
        <xsd:documentation>A data type for additional information about an image.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="AugmentationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:AugmentationType">
            <xsd:sequence>
                <xsd:element ref="j:ImageFacialText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:ImageJuvenileIndicator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:ImageNCICIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:ImagePose" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="j:ImageCategoryCode" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImageFacialText j:ImageFacialText 0 unbounded
ImageJuvenileIndicator j:ImageJuvenileIndicator 0 unbounded
ImageNCICIdentification j:ImageNCICIdentification 0 unbounded
ImagePose j:ImagePose 0 unbounded
ImageCategoryCode j:ImageCategoryCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
Collapse Derivation Tree:
Collapse References:
j:ImageAugmentation
