Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: ImageCaptureDetail
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:ImageCaptureType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
Information regarding the captured (e.g., scanned) image.

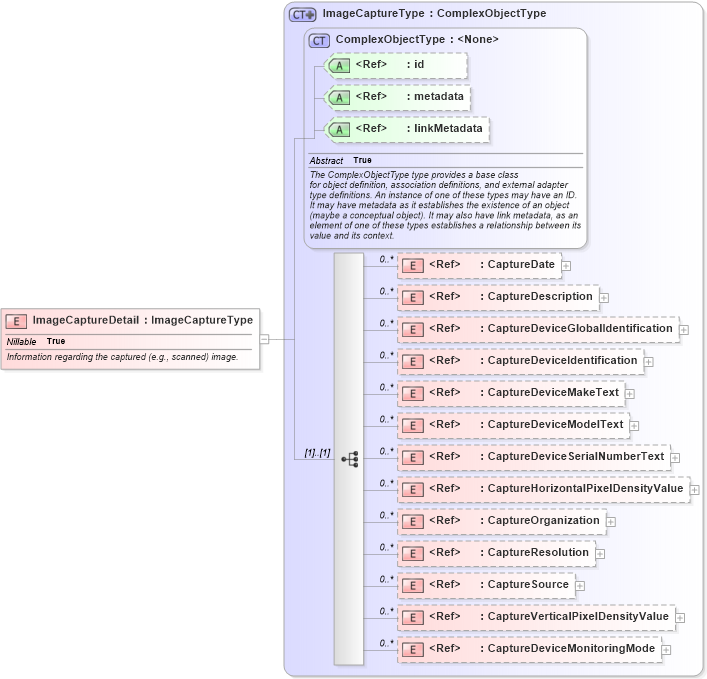

Collapse XSD Schema Diagram:
Drilldown into CaptureDeviceMonitoringMode in schema ansi-nist_xsd Drilldown into CaptureVerticalPixelDensityValue in schema ansi-nist_xsd Drilldown into CaptureSource in schema ansi-nist_xsd Drilldown into CaptureResolution in schema ansi-nist_xsd Drilldown into CaptureOrganization in schema ansi-nist_xsd Drilldown into CaptureHorizontalPixelDensityValue in schema ansi-nist_xsd Drilldown into CaptureDeviceSerialNumberText in schema ansi-nist_xsd Drilldown into CaptureDeviceModelText in schema ansi-nist_xsd Drilldown into CaptureDeviceMakeText in schema ansi-nist_xsd Drilldown into CaptureDeviceIdentification in schema ansi-nist_xsd Drilldown into CaptureDeviceGlobalIdentification in schema ansi-nist_xsd Drilldown into CaptureDescription in schema ansi-nist_xsd Drilldown into CaptureDate in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into ImageCaptureType in schema ansi-nist_xsdXSD Diagram of ImageCaptureDetail in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="ImageCaptureDetail" type="ansi-nist:ImageCaptureType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>Information regarding the captured (e.g., scanned) image.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CaptureDate ansi-nist:CaptureDate 0 unbounded
CaptureDescription ansi-nist:CaptureDescription 0 unbounded
CaptureDeviceGlobalIdentification ansi-nist:CaptureDeviceGlobalIdentification 0 unbounded
CaptureDeviceIdentification ansi-nist:CaptureDeviceIdentification 0 unbounded
CaptureDeviceMakeText ansi-nist:CaptureDeviceMakeText 0 unbounded
CaptureDeviceModelText ansi-nist:CaptureDeviceModelText 0 unbounded
CaptureDeviceSerialNumberText ansi-nist:CaptureDeviceSerialNumberText 0 unbounded
CaptureHorizontalPixelDensityValue ansi-nist:CaptureHorizontalPixelDensityValue 0 unbounded
CaptureOrganization ansi-nist:CaptureOrganization 0 unbounded
CaptureResolution ansi-nist:CaptureResolution 0 unbounded
CaptureSource ansi-nist:CaptureSource 0 unbounded
CaptureVerticalPixelDensityValue ansi-nist:CaptureVerticalPixelDensityValue 0 unbounded
CaptureDeviceMonitoringMode ansi-nist:CaptureDeviceMonitoringMode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
