Definition Type:	Element
Name:	LocationUTMCoordinate
Namespace:	http://niem.gov/niem/niem-core/2.0
Type:	nc:UTMCoordinateType
Containing Schema:	niem-core.xsd
Abstract
Documentation:	A coordinate from the Universal Transverse Mercator (UTM) Coordinate System, which represents a location with a grid zone, an easting value, and a northing value.

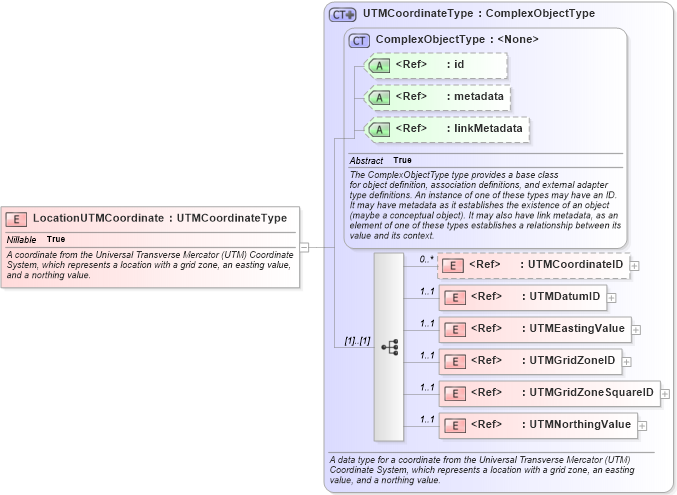

XSD Schema Diagram:

XSD Diagram of LocationUTMCoordinate in schema niem-core_xsd (National Information Exchange Model (NEIM))

XSD Schema Code:

<xsd:element name="LocationUTMCoordinate" type="nc:UTMCoordinateType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>A coordinate from the Universal Transverse Mercator (UTM) Coordinate System, which represents a location with a grid zone, an easting value, and a northing value.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
UTMCoordinateID	nc:UTMCoordinateID	0	unbounded
UTMDatumID	nc:UTMDatumID	1	1
UTMEastingValue	nc:UTMEastingValue	1	1
UTMGridZoneID	nc:UTMGridZoneID	1	1
UTMGridZoneSquareID	nc:UTMGridZoneSquareID	1	1
UTMNorthingValue	nc:UTMNorthingValue	1	1

Child Attributes:

Name	Type	Default Value	Use
id	s:id		(Optional)
metadata	s:metadata		(Optional)
linkMetadata	s:linkMetadata		(Optional)

Derivation Tree:
	s:ComplexObjectType nc:UTMCoordinateType *LocationUTMCoordinate*
