Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: MD_ImageDescription_Type
Namespace: http://niem.gov/niem/external/iso-19139-gmd/draft-0.1/gmd/dhs-gmo/1.0.0
Type: gmd:MD_CoverageDescription_Type
Containing Schema: content.xsd
Abstract
Documentation:
Information about an image's suitability for use

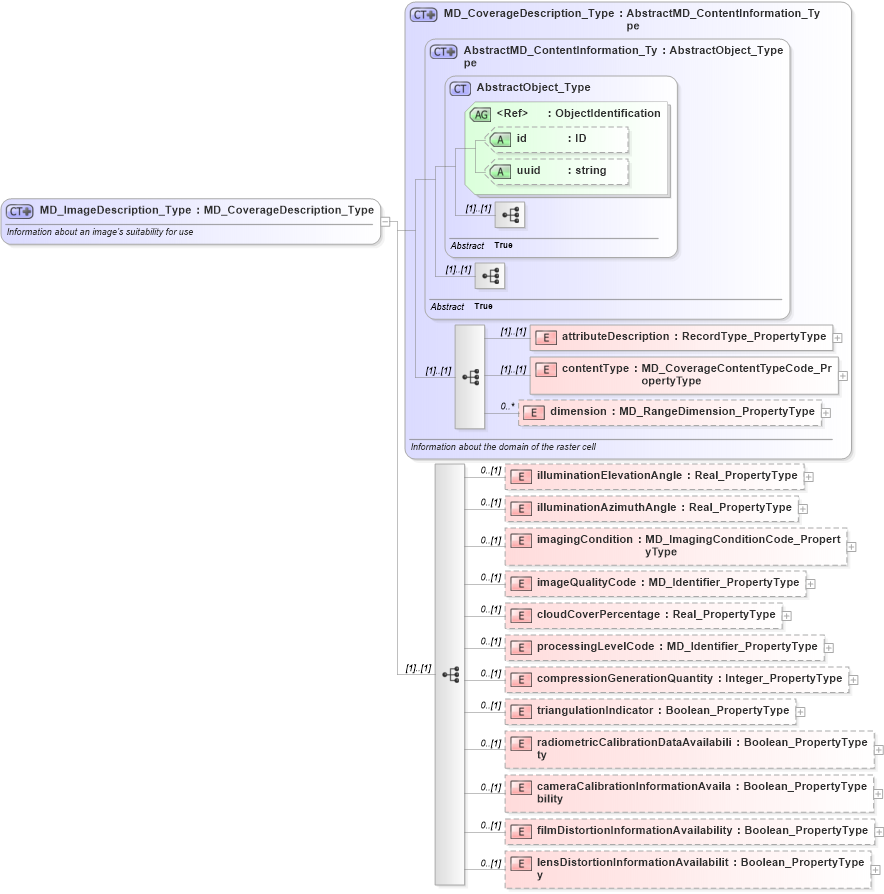

Collapse XSD Schema Diagram:
Drilldown into lensDistortionInformationAvailability in schema content_xsd Drilldown into filmDistortionInformationAvailability in schema content_xsd Drilldown into cameraCalibrationInformationAvailability in schema content_xsd Drilldown into radiometricCalibrationDataAvailability in schema content_xsd Drilldown into triangulationIndicator in schema content_xsd Drilldown into compressionGenerationQuantity in schema content_xsd Drilldown into processingLevelCode in schema content_xsd Drilldown into cloudCoverPercentage in schema content_xsd Drilldown into imageQualityCode in schema content_xsd Drilldown into imagingCondition in schema content_xsd Drilldown into illuminationAzimuthAngle in schema content_xsd Drilldown into illuminationElevationAngle in schema content_xsd Drilldown into dimension in schema content_xsd Drilldown into contentType in schema content_xsd Drilldown into attributeDescription in schema content_xsd Drilldown into uuid in schema gcobase_xsd Drilldown into id in schema gcobase_xsd Drilldown into ObjectIdentification in schema gcobase_xsd Drilldown into AbstractObject_Type in schema gcobase_xsd Drilldown into AbstractMD_ContentInformation_Type in schema content_xsd Drilldown into MD_CoverageDescription_Type in schema content_xsdXSD Diagram of MD_ImageDescription_Type in schema content_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:complexType name="MD_ImageDescription_Type">
    <xs:annotation>
        <xs:documentation>Information about an image's suitability for use</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gmd:MD_CoverageDescription_Type">
            <xs:sequence>
                <xs:element name="illuminationElevationAngle" type="gco:Real_PropertyType" minOccurs="0" />
                <xs:element name="illuminationAzimuthAngle" type="gco:Real_PropertyType" minOccurs="0" />
                <xs:element name="imagingCondition" type="gmd:MD_ImagingConditionCode_PropertyType" minOccurs="0" />
                <xs:element name="imageQualityCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0" />
                <xs:element name="cloudCoverPercentage" type="gco:Real_PropertyType" minOccurs="0" />
                <xs:element name="processingLevelCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0" />
                <xs:element name="compressionGenerationQuantity" type="gco:Integer_PropertyType" minOccurs="0" />
                <xs:element name="triangulationIndicator" type="gco:Boolean_PropertyType" minOccurs="0" />
                <xs:element name="radiometricCalibrationDataAvailability" type="gco:Boolean_PropertyType" minOccurs="0" />
                <xs:element name="cameraCalibrationInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0" />
                <xs:element name="filmDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0" />
                <xs:element name="lensDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
attributeDescription gmd:attributeDescription (1) (1)
contentType gmd:contentType (1) (1)
dimension gmd:dimension 0 unbounded
illuminationElevationAngle gmd:illuminationElevationAngle 0 (1)
illuminationAzimuthAngle gmd:illuminationAzimuthAngle 0 (1)
imagingCondition gmd:imagingCondition 0 (1)
imageQualityCode gmd:imageQualityCode 0 (1)
cloudCoverPercentage gmd:cloudCoverPercentage 0 (1)
processingLevelCode gmd:processingLevelCode 0 (1)
compressionGenerationQuantity gmd:compressionGenerationQuantity 0 (1)
triangulationIndicator gmd:triangulationIndicator 0 (1)
radiometricCalibrationDataAvailability gmd:radiometricCalibrationDataAvailability 0 (1)
cameraCalibrationInformationAvailability gmd:cameraCalibrationInformationAvailability 0 (1)
filmDistortionInformationAvailability gmd:filmDistortionInformationAvailability 0 (1)
lensDistortionInformationAvailability gmd:lensDistortionInformationAvailability 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id Optional
uuid gco:uuid Optional
Collapse Derivation Tree:
Collapse References:
gmd:MD_ImageDescription
