Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: MeasureType
Namespace: http://niem.gov/niem/niem-core/2.0
Type: s:ComplexObjectType
Containing Schema: niem-core.xsd
Abstract
Documentation:
A data type for a measurement.

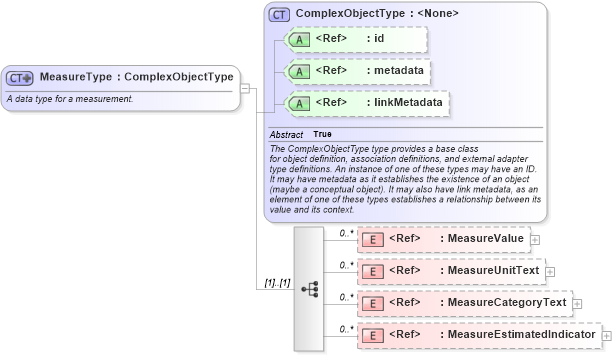

Collapse XSD Schema Diagram:
Drilldown into MeasureEstimatedIndicator in schema niem-core_xsd Drilldown into MeasureCategoryText in schema niem-core_xsd Drilldown into MeasureUnitText in schema niem-core_xsd Drilldown into MeasureValue in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of MeasureType in schema niem-core_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="MeasureType">
    <xsd:annotation>
        <xsd:documentation>A data type for a measurement.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:MeasureValue" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:MeasureUnitText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:MeasureCategoryText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:MeasureEstimatedIndicator" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MeasureValue nc:MeasureValue 0 unbounded
MeasureUnitText nc:MeasureUnitText 0 unbounded
MeasureCategoryText nc:MeasureCategoryText 0 unbounded
MeasureEstimatedIndicator nc:MeasureEstimatedIndicator 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
j:CrashVehicleLegalSpeedRate, geo:Distance, j:DrivingIncidentLegalSpeedRate, j:DrivingIncidentRecordedSpeedRate, nc:EngineDisplacementMeasureType, nc:GeographicElevationMeasureType, nc:LengthMeasureType, nc:Measurenc:OdometerReadingMeasureType, nc:SpeedMeasureType, nc:SubstanceMeasureType, nc:TimeMeasureType, nc:WeightMeasureType,
