Definition Type: Element
Name: Metric
Namespace: http://www.landxml.org/schema/LandXML-1.1
Containing Schema: LandXML-1.1.xsd
Abstract

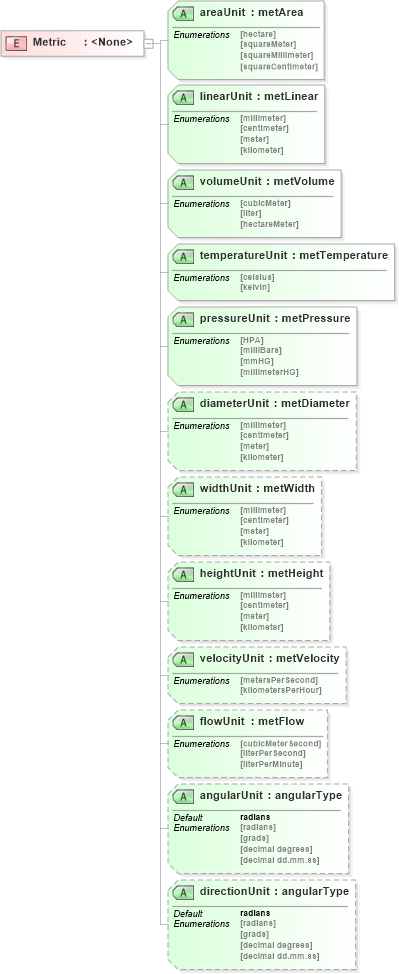

Collapse XSD Schema Diagram:
Drilldown into directionUnit in schema landxml-1_1_xsd Drilldown into angularUnit in schema landxml-1_1_xsd Drilldown into flowUnit in schema landxml-1_1_xsd Drilldown into velocityUnit in schema landxml-1_1_xsd Drilldown into heightUnit in schema landxml-1_1_xsd Drilldown into widthUnit in schema landxml-1_1_xsd Drilldown into diameterUnit in schema landxml-1_1_xsd Drilldown into pressureUnit in schema landxml-1_1_xsd Drilldown into temperatureUnit in schema landxml-1_1_xsd Drilldown into volumeUnit in schema landxml-1_1_xsd Drilldown into linearUnit in schema landxml-1_1_xsd Drilldown into areaUnit in schema landxml-1_1_xsdXSD Diagram of Metric in schema landxml-1_1_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xs:element name="Metric">
    <xs:annotation>
        <xs:documentation />
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="areaUnit" type="metArea" use="required" />
        <xs:attribute name="linearUnit" type="metLinear" use="required" />
        <xs:attribute name="volumeUnit" type="metVolume" use="required" />
        <xs:attribute name="temperatureUnit" type="metTemperature" use="required" />
        <xs:attribute name="pressureUnit" type="metPressure" use="required" />
        <xs:attribute name="diameterUnit" type="metDiameter" />
        <xs:attribute name="widthUnit" type="metWidth" />
        <xs:attribute name="heightUnit" type="metHeight" />
        <xs:attribute name="velocityUnit" type="metVelocity" />
        <xs:attribute name="flowUnit" type="metFlow" />
        <xs:attribute name="angularUnit" type="angularType" default="radians" />
        <xs:attribute name="directionUnit" type="angularType" default="radians" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
areaUnit land:areaUnit Required
linearUnit land:linearUnit Required
volumeUnit land:volumeUnit Required
temperatureUnit land:temperatureUnit Required
pressureUnit land:pressureUnit Required
diameterUnit land:diameterUnit (Optional)
widthUnit land:widthUnit (Optional)
heightUnit land:heightUnit (Optional)
velocityUnit land:velocityUnit (Optional)
flowUnit land:flowUnit (Optional)
angularUnit land:angularUnit radians (Optional)
directionUnit land:directionUnit radians (Optional)
