Definition Type: Element
Name: MinutiaeFingerPatternDetail
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:MinutiaeFingerPatternType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
A repeatable subelement containing details about a fingerprint pattern. The first occurrence is the primary pattern, others are reference patterns.

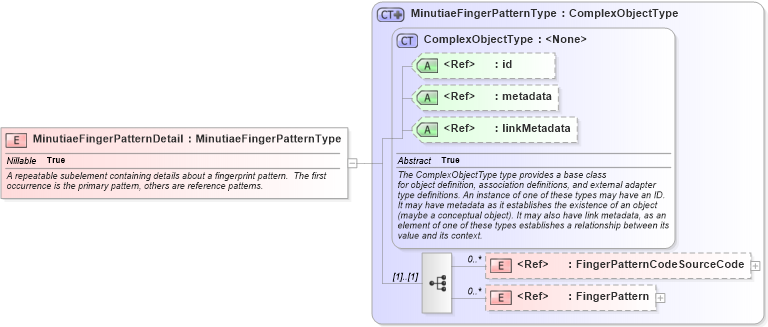

Collapse XSD Schema Diagram:
Drilldown into FingerPattern in schema ansi-nist_xsd Drilldown into FingerPatternCodeSourceCode in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into MinutiaeFingerPatternType in schema ansi-nist_xsdXSD Diagram of MinutiaeFingerPatternDetail in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="MinutiaeFingerPatternDetail" type="ansi-nist:MinutiaeFingerPatternType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>A repeatable subelement containing details about a fingerprint pattern.  The first occurrence is the primary pattern, others are reference patterns.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FingerPatternCodeSourceCode ansi-nist:FingerPatternCodeSourceCode 0 unbounded
FingerPattern ansi-nist:FingerPattern 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
