Definition Type: ComplexType
Name: MovingObjectStatusType
Namespace: http://niem.gov/niem/external/dhs-gmo/AS/mobileObject/1.0.0
Type: gml:AbstractTimeSliceType
Containing Schema: mobileObject.xsd
Abstract
Documentation:
This type encapsulates various dynamic properties of moving objects (points, lines, regions). It is useful for dealing with features whose geometry or topology changes over time. It is different from the gml:MovingObjectStatusType in that it uses gml:pointProperty instead of gml:location, which is deprecated in (ISO) GML v3.2

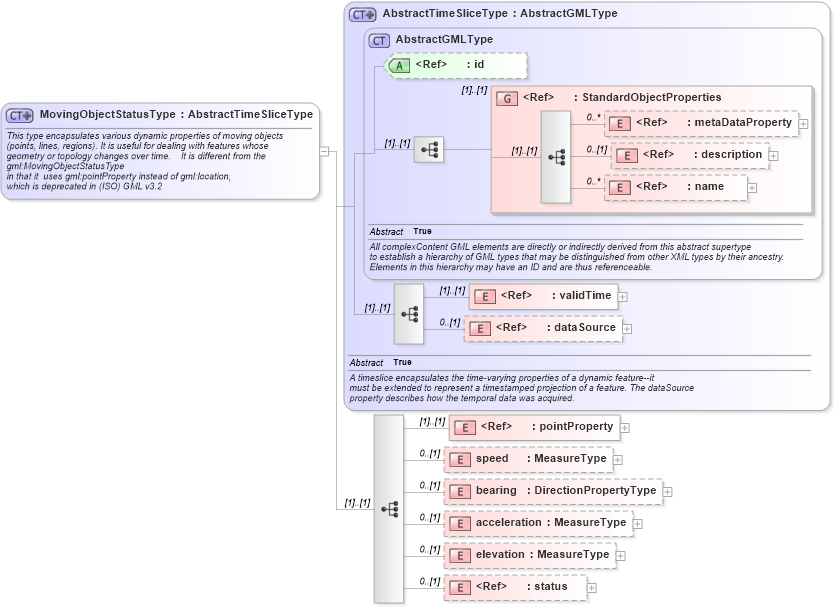

Collapse XSD Schema Diagram:
Drilldown into status in schema gml_xsd Drilldown into elevation in schema mobileobject_xsd Drilldown into acceleration in schema mobileobject_xsd Drilldown into bearing in schema mobileobject_xsd Drilldown into speed in schema mobileobject_xsd Drilldown into pointProperty in schema gml_xsd Drilldown into dataSource in schema gml_xsd Drilldown into validTime in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into StandardObjectProperties in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractGMLType in schema gml_xsd Drilldown into AbstractTimeSliceType in schema gml_xsdXSD Diagram of MovingObjectStatusType in schema mobileobject_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="MovingObjectStatusType">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:dynamicFeature:3.1.1" />
        <documentation xml:lang="en">
             This type encapsulates various dynamic properties of moving objects
             (points, lines, regions). It is useful for dealing with features whose
             geometry or topology changes over time.    It is different from the gml:MovingObjectStatusType
             in that it  uses gml:pointProperty instead of gml:location,
             which is deprecated in (ISO) GML v3.2 </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractTimeSliceType">
            <sequence>
                <element ref="gml:pointProperty" />
                <element name="speed" type="gml:MeasureType" minOccurs="0" />
                <element name="bearing" type="gml:DirectionPropertyType" minOccurs="0" />
                <element name="acceleration" type="gml:MeasureType" minOccurs="0" />
                <element name="elevation" type="gml:MeasureType" minOccurs="0" />
                <element ref="gml:status" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
pointProperty gml:pointProperty (1) (1)
speed mo:speed 0 (1)
bearing mo:bearing 0 (1)
acceleration mo:acceleration 0 (1)
elevation mo:elevation 0 (1)
status gml:status 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
Collapse Derivation Tree:
Collapse References:
mo:MovingObjectStatus
