Definition Type: ComplexType
Name: MultiSurfaceCoverageType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractDiscreteCoverageType
Containing Schema: gml.xsd
Abstract
Documentation:
A discrete coverage type whose domain is defined by a collection of surface patches (includes polygons, triangles, rectangles, etc).

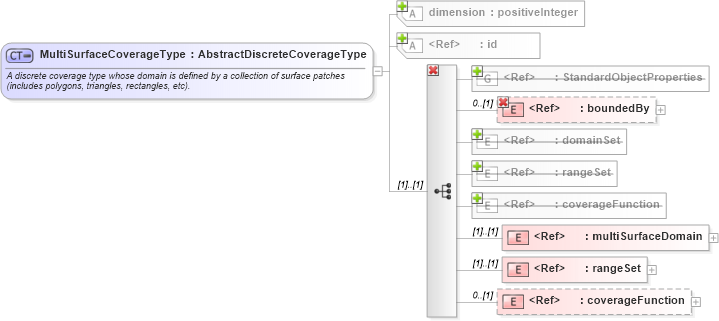

Collapse XSD Schema Diagram:
Drilldown into coverageFunction in schema gml_xsd Drilldown into rangeSet in schema gml_xsd Drilldown into multiSurfaceDomain in schema gml_xsd Drilldown into coverageFunction in schema gml_xsd Drilldown into rangeSet in schema gml_xsd Drilldown into domainSet in schema gml_xsd Drilldown into boundedBy in schema gml_xsd Drilldown into StandardObjectProperties in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into dimension in schema gml_xsdXSD Diagram of MultiSurfaceCoverageType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="MultiSurfaceCoverageType">
    <annotation>
        <appinfo source="urn:opengis:specification:gml:schema-xsd:coverage:3.1.1">coverage.xsd</appinfo>
        <documentation>A discrete coverage type whose domain is defined by a collection of surface patches (includes polygons, triangles, rectangles, etc).</documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:AbstractDiscreteCoverageType">
            <sequence>
                <element ref="gml:boundedBy" minOccurs="0" />
                <element ref="gml:multiSurfaceDomain" />
                <element ref="gml:rangeSet" />
                <element ref="gml:coverageFunction" minOccurs="0" />
            </sequence>
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
boundedBy gml:boundedBy 0 (1)
multiSurfaceDomain gml:multiSurfaceDomain (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Optional
dimension gml:dimension Optional
Collapse Derivation Tree:
Collapse References:
gml:MultiSurfaceCoverage
