Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: observedProperty
Namespace: http://niem.gov/niem/external/ogc-observation/draft-0.14.5/om/dhs-gmo/1.0.0
Type: swe:PhenomenonPropertyType
Containing Schema: observation.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Link to a description of the property or phenomenon whose value is being described or estimated through observation for example "wavelength", "grass-species", "power", "intensity in the waveband xy", etc. It is this feature-property that provides the (semantic) type of the observation. Note that the description of the phenomenon may be quite specific and constrained. In general the precise details of the constraints describing the observe properties require attention to the procedure used in making the observation: e.g. an optical sensor typically has a wavelength-dependent response. This property may be provided for client convenience, to allow comparison between and aggregation of observations of the same property made using different procedures.
Collapse XSD Schema Diagram:

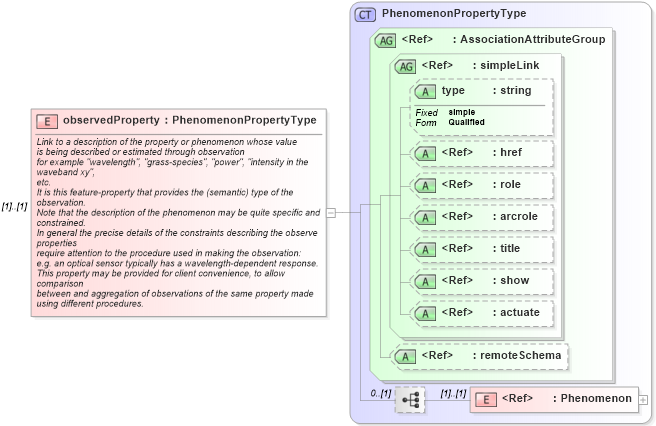

Drilldown into Phenomenon in schema phenomenon_xsd Drilldown into remoteSchema in schema gml_xsd Drilldown into actuate in schema xlinks_xsd Drilldown into show in schema xlinks_xsd Drilldown into title in schema xlinks_xsd Drilldown into arcrole in schema xlinks_xsd Drilldown into role in schema xlinks_xsd Drilldown into href in schema xlinks_xsd Drilldown into type in schema xlinks_xsd Drilldown into simpleLink in schema xlinks_xsd Drilldown into AssociationAttributeGroup in schema gml_xsd Drilldown into PhenomenonPropertyType in schema phenomenon_xsdXSD Diagram of observedProperty in schema observation_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="observedProperty" type="swe:PhenomenonPropertyType">
    <annotation>
        <documentation>Link to a description of the property or phenomenon whose value
is being described or estimated through observation
for example "wavelength", "grass-species", "power", "intensity in the waveband xy",
etc.
It is this feature-property that provides the (semantic) type of the observation.
Note that the description of the phenomenon may be quite specific and
constrained.
In general the precise details of the constraints describing the observe properties
require attention to the procedure used in making the observation:
e.g. an optical sensor typically has a wavelength-dependent response.
This property may be provided for client convenience, to allow comparison
between and aggregation of observations of the same property made using different procedures.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Phenomenon swe:Phenomenon (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href Optional
role xlink:role Optional
arcrole xlink:arcrole Optional
title xlink:title Optional
show xlink:show Optional
actuate xlink:actuate Optional
remoteSchema gml:remoteSchema Optional
Collapse Derivation Tree:
