Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: OnlineResource
Namespace: http://niem.gov/niem/external/ogc-ows/1.0.0/dhs-gmo/1.0.0
Type: ows:OnlineResourceType
Containing Schema: ows.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
On-line information that can be used to contact the individual or organization. OWS specifics: The xlink:href attribute in the xlink:simpleLink attribute group shall be used to reference this resource. Whenever practical, the xlink:href attribute with type anyURI should be a URL from which more contact information can be electronically retrieved. The xlink:title attribute with type "string" can be used to name this set of information. The other attributes in the xlink:simpleLink attribute group should not be used.

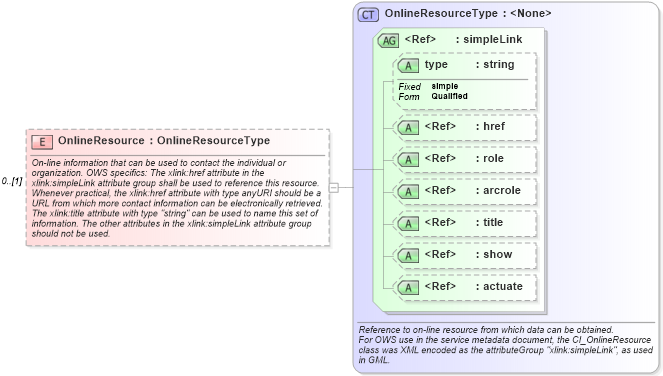

Collapse XSD Schema Diagram:
Drilldown into actuate in schema xlinks_xsd Drilldown into show in schema xlinks_xsd Drilldown into title in schema xlinks_xsd Drilldown into arcrole in schema xlinks_xsd Drilldown into role in schema xlinks_xsd Drilldown into href in schema xlinks_xsd Drilldown into type in schema xlinks_xsd Drilldown into simpleLink in schema xlinks_xsd Drilldown into OnlineResourceType in schema ows_xsdXSD Diagram of OnlineResource in schema ows_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="OnlineResource" type="ows:OnlineResourceType" minOccurs="0">
    <annotation>
        <documentation>On-line information that can be used to contact the individual or organization. OWS specifics: The xlink:href attribute in the xlink:simpleLink attribute group shall be used to reference this resource. Whenever practical, the xlink:href attribute with type anyURI should be a URL from which more contact information can be electronically retrieved. The xlink:title attribute with type "string" can be used to name this set of information. The other attributes in the xlink:simpleLink attribute group should not be used. </documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href Optional
role xlink:role Optional
arcrole xlink:arcrole Optional
title xlink:title Optional
show xlink:show Optional
actuate xlink:actuate Optional
Collapse Derivation Tree:
