Definition Type: Element
Name: Operation
Namespace: http://niem.gov/niem/external/ogc-ows/1.0.0/dhs-gmo/1.0.0
Containing Schema: ows.xsd
Abstract
Documentation:
Metadata for one operation that this server implements.

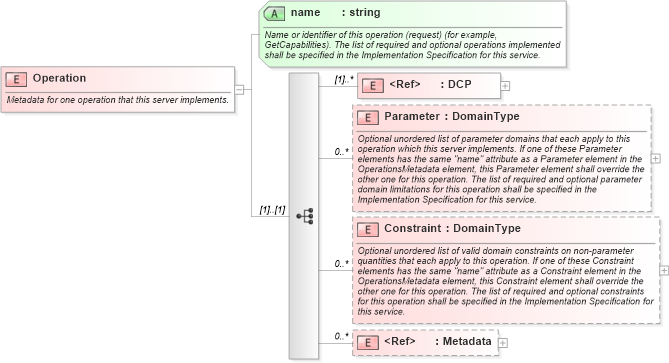

Collapse XSD Schema Diagram:
Drilldown into Metadata in schema ows_xsd Drilldown into Constraint in schema ows_xsd Drilldown into Parameter in schema ows_xsd Drilldown into DCP in schema ows_xsd Drilldown into name in schema ows_xsdXSD Diagram of Operation in schema ows_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<element name="Operation">
    <annotation>
        <documentation>Metadata for one operation that this server implements. </documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="ows:DCP" maxOccurs="unbounded">
                <annotation>
                    <documentation>Unordered list of Distributed Computing Platforms (DCPs) supported for this operation. At present, only the HTTP DCP is defined, so this element will appear only once. </documentation>
                </annotation>
            </element>
            <element name="Parameter" type="ows:DomainType" minOccurs="0" maxOccurs="unbounded">
                <annotation>
                    <documentation>Optional unordered list of parameter domains that each apply to this operation which this server implements. If one of these Parameter elements has the same "name" attribute as a Parameter element in the OperationsMetadata element, this Parameter element shall override the other one for this operation. The list of required and optional parameter domain limitations for this operation shall be specified in the Implementation Specification for this service. </documentation>
                </annotation>
            </element>
            <element name="Constraint" type="ows:DomainType" minOccurs="0" maxOccurs="unbounded">
                <annotation>
                    <documentation>Optional unordered list of valid domain constraints on non-parameter quantities that each apply to this operation. If one of these Constraint elements has the same "name" attribute as a Constraint element in the OperationsMetadata element, this Constraint element shall override the other one for this operation. The list of required and optional constraints for this operation shall be specified in the Implementation Specification for this service. </documentation>
                </annotation>
            </element>
            <element ref="ows:Metadata" minOccurs="0" maxOccurs="unbounded">
                <annotation>
                    <documentation>Optional unordered list of additional metadata about this operation and its' implementation. A list of required and optional metadata elements for this operation should be specified in the Implementation Specification for this service. (Informative: This metadata might specify the operation request parameters or provide the XML Schemas for the operation request.) </documentation>
                </annotation>
            </element>
        </sequence>
        <attribute name="name" type="string" use="required">
            <annotation>
                <documentation>Name or identifier of this operation (request) (for example, GetCapabilities). The list of required and optional operations implemented shall be specified in the Implementation Specification for this service. </documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DCP ows:DCP (1) unbounded
Parameter ows:Parameter 0 unbounded
Constraint ows:Constraint 0 unbounded
Metadata ows:Metadata 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name ows:name Required
