Definition Type: ComplexType
Name: PassengerType
Namespace: http://niem.gov/niem/domains/infrastructureProtection/2.0
Type: s:ComplexObjectType
Containing Schema: infrastructureProtection.xsd
Abstract
Documentation:
A data type for a plane passenger

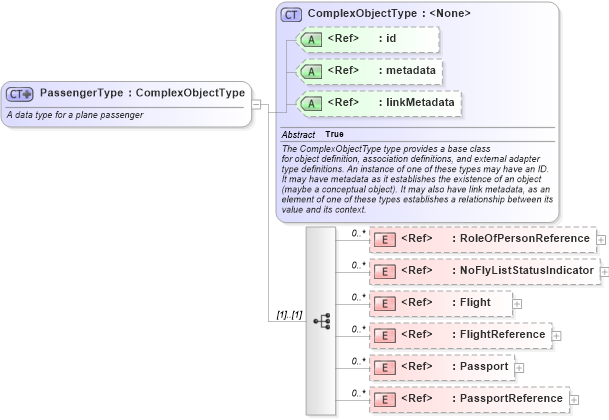

Collapse XSD Schema Diagram:
Drilldown into PassportReference in schema niem-core_xsd Drilldown into Passport in schema niem-core_xsd Drilldown into FlightReference in schema infrastructureprotection_xsd Drilldown into Flight in schema infrastructureprotection_xsd Drilldown into NoFlyListStatusIndicator in schema infrastructureprotection_xsd Drilldown into RoleOfPersonReference in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of PassengerType in schema infrastructureprotection_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="PassengerType">
    <xsd:annotation>
        <xsd:documentation>A data type for a plane passenger</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:RoleOfPersonReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ip:NoFlyListStatusIndicator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ip:Flight" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ip:FlightReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:Passport" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:PassportReference" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RoleOfPersonReference nc:RoleOfPersonReference 0 unbounded
NoFlyListStatusIndicator ip:NoFlyListStatusIndicator 0 unbounded
Flight ip:Flight 0 unbounded
FlightReference ip:FlightReference 0 unbounded
Passport nc:Passport 0 unbounded
PassportReference nc:PassportReference 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
ip:Passenger
