Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: PersonAlertAssociationType
Namespace: http://niem.gov/niem/domains/screening/2.0
Type: nc:AssociationType
Containing Schema: screening.xsd
Abstract
Documentation:
A data type for an association between a Person and an Alert Type that identifies the person of interest details.

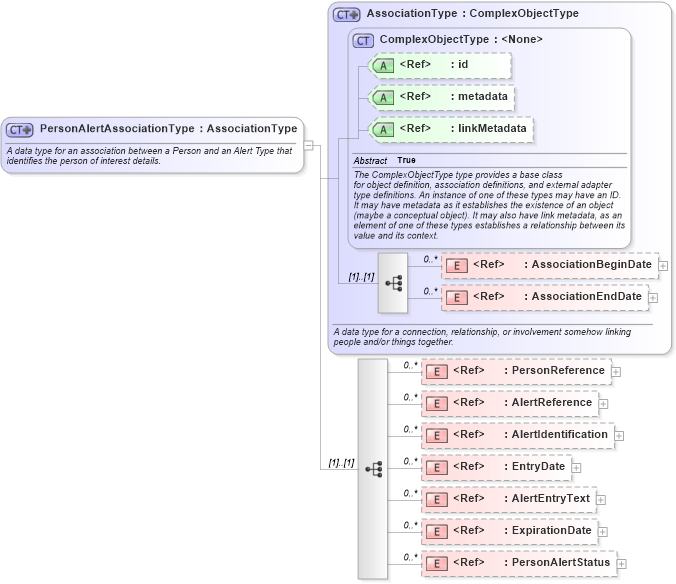

Collapse XSD Schema Diagram:
Drilldown into PersonAlertStatus in schema screening_xsd Drilldown into ExpirationDate in schema screening_xsd Drilldown into AlertEntryText in schema screening_xsd Drilldown into EntryDate in schema screening_xsd Drilldown into AlertIdentification in schema screening_xsd Drilldown into AlertReference in schema screening_xsd Drilldown into PersonReference in schema niem-core_xsd Drilldown into AssociationEndDate in schema niem-core_xsd Drilldown into AssociationBeginDate in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into AssociationType in schema niem-core_xsdXSD Diagram of PersonAlertAssociationType in schema screening_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="PersonAlertAssociationType">
    <xsd:annotation>
        <xsd:documentation>A data type for an association between a Person and an Alert Type that identifies the person of interest details.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/niem-core/2.0" i:name="AssociationType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="nc:AssociationType">
            <xsd:sequence>
                <xsd:element ref="nc:PersonReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:AlertReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:AlertIdentification" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:EntryDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:AlertEntryText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:ExpirationDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="scr:PersonAlertStatus" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AssociationBeginDate nc:AssociationBeginDate 0 unbounded
AssociationEndDate nc:AssociationEndDate 0 unbounded
PersonReference nc:PersonReference 0 unbounded
AlertReference scr:AlertReference 0 unbounded
AlertIdentification scr:AlertIdentification 0 unbounded
EntryDate scr:EntryDate 0 unbounded
AlertEntryText scr:AlertEntryText 0 unbounded
ExpirationDate scr:ExpirationDate 0 unbounded
PersonAlertStatus scr:PersonAlertStatus 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
scr:PersonAlertAssociation
